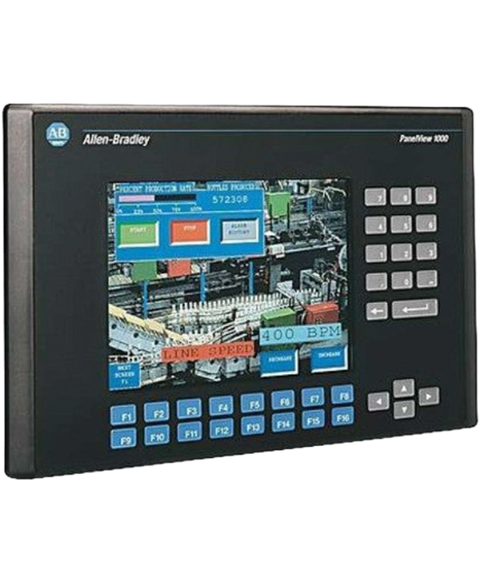

Allen Bradley 2711-K10C8
The Allen-Bradley 2711-K10C8 is a PanelView 1000 Standard Operator Terminal. This operator terminal is powered by an external 85-264VAC supply voltage and has a 10-inch display with embedded Data Highway Plus (DH+) communication interface and RS232 printer port. It has Sixteen (16) fully programmable function keys.
This Allen Bradley 2711-K10C8 is supplied brand new by PartLogic for machine control, process visibility, operator input, production monitoring and industrial automation applications. It forms part of our Industrial automation > Hmi > Panelview range and is referenced internally as PartLogic SKU PL26805529583.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Product Type | PanelView 1000 Operator Terminal |
| Product Line | Panelview 1000 |
| Part Number | 2711-K10C8 |
| UPC | 662072718551 |
| Weight | 7.00 lbs (3.18 kg) |
| Accessories | function key legend inserts; Anti-glare overlays; backlight replacements; Real-time clock replacements; Mounting hardware; Power supply and terminal block; interface modules; |
| Input Voltage range | 85…264V AC, 47…63 Hz |
| Communication ports | Data Highway Plus (DH+); RS232 (Printer) |
| ATA memory card | Supported |
| Application memory | 310KB application runtime; 1008 KB nonvolatile memory (application objects plus text and bitmaps) |
| Keypad function keys | 16 function keys (F1…F16) |
| Backlight | 50,000 hr 1/2 life at 25 °C (77 °F) |
| Resolution | 640 x 480 |
| Display Area | 211 x 158 mm (8.3 x 6.2 in.) |
| Display Type | Color active matrix TFT |
| Product Family | PanelView Standard |
| Display Size | 10.1 inches |
| Display Color | Multi-Color |
| Input Type | Keypad |
| Communication | DH Plus (DH+) and Printer (RS-232) Port |
| Input Power | 85 to 264 Volts AC |
| RAM | 310 KB |
| Nonvolatile Memory | 1008 KB |
| Enclosure Type | NEMA Type 12/13 or 4x |
| Product Lifecycle Status* | Discontinued/Obsolete |
| Brand | Allen Bradley |
