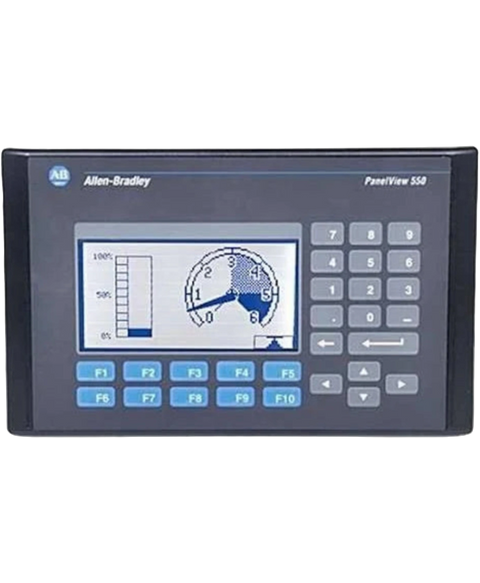

Allen Bradley 2711-B5A2
The Allen-Bradley 2711-B5A2 is an Allen-Bradley PanelView 550 Standard Operator Terminal. This operator terminal is powered by an external 85-264V AC supply voltage and has a 5.5-inch display with embedded DH485 communication port. It has ten (10) Function keys and a Touchscreen operator interface.
This Allen Bradley 2711-B5A2 is supplied brand new by PartLogic for machine control, process visibility, operator input, production monitoring and industrial automation applications. It forms part of our Industrial automation > Hmi > Panelview range and is referenced internally as PartLogic SKU PL26986506102.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Product Type | Operator Terminals |
| Product Line | Panelview 550 |
| Part Number | 2711-B5A2 |
| UPC | 662468332682 |
| Weight | 2.75 lbs (1.25 kg) |
| Backlight | 100,000 hr LED backlight life |
| Input Type | Keypad / Touch |
| Product Family | PanelView Standard Terminals |
| Display Type | Monochrome LCD blue mode display |
| Display Area | 120 x 60 mm (4.75 x 2.38 in.) |
| Resolution | 256 x 128 |
| Touchscreen | Touch cells: 128 Actuation: 1 million presses |
| Keypad function keys | 10 function keys (F1…F10) |
| Application memory | 170 KB application runtime; 240 KB nonvolatile memory (application objects plus text and bitmaps) |
| Communication ports | DH485 |
| Input Voltage range | 85…264V AC, 47…63 Hz |
| Accessories | function key legend inserts; Anti-glare overlays; backlight replacements; Real-time clock replacements; Mounting hardware; Power supply and terminal block; interface modules; |
| Display Size | 5.5 inches |
| Display Color | Monochrome LCD blue mode |
| Communication | DH-485 Communication Ports |
| Input Power | 120 Volts AC |
| Memory | 170 KB application runtime |
| Communication Cable | 1747-C10 |
| Series | A,B,C,D,E,F,G,H |
| Antiglare protection | Yes |
| Product Lifecycle Status* | Discontinued/Obsolete |
| Brand | Allen Bradley |
