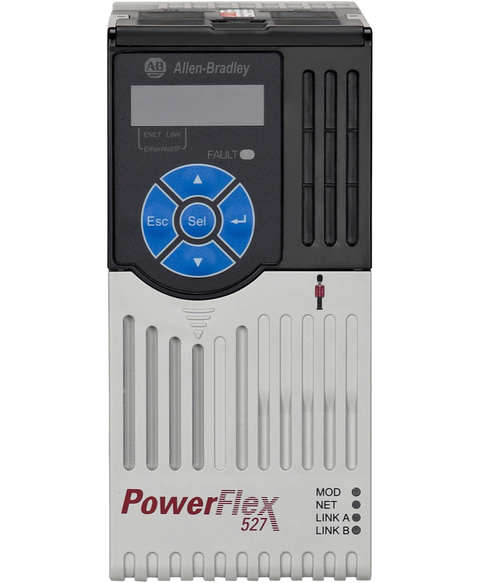

Allen Bradley 25C-D4P0N114
The Allen-Bradley 25C-D4P0N114 PowerFlex 527 adjustable frequency AC drive. This drive features an input voltage range of 380-480VAC, 3-phase and delivers output voltage of 0-460VAC, 3-Phase, with rated Current of 4.0 A and Power of 1.5 kW (2.0 HP) for both normal and heavy-duty operation. It has an integral Dual Ethernet communication interface that support Linear, Star and Ring topologies. It is capable of Volts , Hertz, Sensorless Vector Control (SVC), SVC Economizer, Closed Loop Position Vector Control and Closed Loop Velocity Vector Control. This drive has an integrated EMC filter.
This Allen Bradley 25C-D4P0N114 is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Ac drives > Powerflex 525 range and is referenced internally as PartLogic SKU PL26966553188.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | Drives |
| Product Line | PowerFlex 527 |
| Part Number | 25C-D4P0N114 |
| UPC | 887172530388 |
| Weight | 3.00 lbs (1.36 kg) |
| Output Current | 4.0 A |
| Product Family | PowerFlex 527 Adjustable Frequency AC Drive |
| Input Voltage | 380-480VAC |
| Input Phase | 3-Phase |
| Output Voltage | 0-460VAC |
| Output Power | 1.5 kW (2.0 HP) |
| I/O | Discrete Inputs: Four (4) Inputs Discrete Outputs: Two (2) Opto Outputs and Two (2) Relay Outputs Analog Input: Two (2) Analog Input Analog output: One (1) analog output |
| Installation | Panel Mount |
| Enclosure Rating | IP20 / NEMA UL Open Type |
| Control Method | Volts / Hertz Control; Sensorless Vector Control; Sensorless Vector Economizer |
| Built-in communication port | Two (2) Ethernet ports |
| Integrated Safety | Safe-Torque Off (STO) functionality |
| Compatible Controllers | CompactLogix; GuardLogix; ControlLogix |
| EMC Filter | Integrated |
| Voltage Class | 480 AC Volts |
| Frame Size | A |
| Enclosure Type | IP20 NEMA (Open) |
| EMC Filtering Option | One |
| Phase Count | Three |
| Horsepower | 2 |
| Communication | EtherNet IP (Dual Port) |
| Brand | Allen Bradley |
