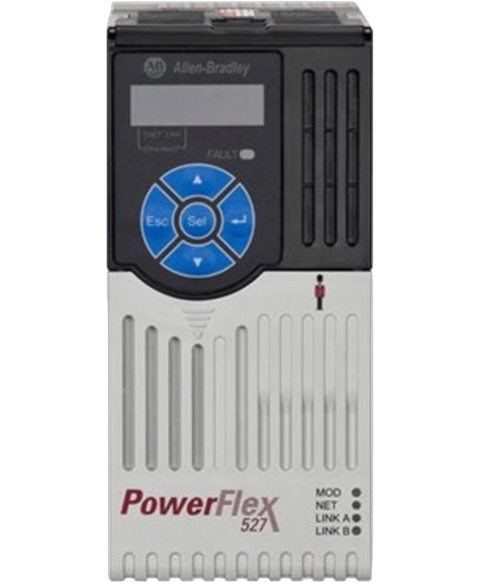

Allen Bradley 25C-D4P0N104
The Allen-Bradley 25C-D4P0N104 is an adjustable frequency AC drive. This drive is part of the PowerFlex 527 product category that is used for implementing Speed and Torque control of industrial AC motors. It is operated with an input supply voltage of 323-528 VAC, 3-phase and frequency range of 47-63 Hz. It has an applicable motor current output and power of 4.0 Amperes and 2.0 HP or 1.5 kW for both normal and heavy-duty operation. This drive supports Frequency control via Basic Volts,Hertz, Volts,Hertz for Fan and Pump applications, Sensorless Vector Control (SVC) and economizer Sensorless Vector Control (SVC). It also supports Position loop control via Closed loop position Vector control and Velocity loop control using Closed loop Velocity Vector control. Velocity and Loop control require use of an appropriate encoder module.
This Allen Bradley 25C-D4P0N104 is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Ac drives > Powerflex 525 range and is referenced internally as PartLogic SKU PL26935228064.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | Drives |
| Product Line | PowerFlex 527 |
| Part Number | 25C-D4P0N104 |
| UPC | 887172530296 |
| Weight | 2.44 lbs (1.11 kg) |
| Output Current | 6.0 A |
| Input Voltage | 85-132 VAC |
| Input Phase | 3-Phase |
| Output Voltage | 0-230VAC |
| Output Power | 1.5 HP (1.1 kW) |
| I/O | Discrete Inputs: Four (4) Inputs Discrete Outputs: Two (2) Opto-Outputs and Two (2) Relay Outputs Analog Input: Two (2) Analog Input Analog output: One (1) analog output |
| Installation | Panel Mount / DIN Rail |
| Enclosure Rating | IP20 / NEMA UL Type Open |
| Frame | B |
| Control Method | Volts per Hertz (V/Hz), C/Hz for Fan and Pump, Sensorless Vector Control (SVC), Closed loop velocity vector control, Closed Loop Position vector |
| Built-in communication port | Ethernet I/P |
| Ethernet topologies | Linear; Device Level Ring (DLR) |
| Integrated Safety | Safe-Torque Off (STO) functionality |
| Human Interface Module (HIM) | Yes; Standard HIM |
| Compatible Controllers | CompactLogix; GuardLogix; ControlLogix |
| Voltage Class | 480 AC Volts |
| Input Voltage range | 323-528 VAC, 3-Phase |
| Frame Size | A |
| Nominal input voltage | 380-480 VAC, 3-Phase |
| Enclosure Type | IP20 NEMA (Open) |
| Output voltage range | 0-460 VAC, 3-Phase |
| EMC Filtering Option | No |
| Phase Count | Three |
| Horsepower | 2 |
| Output frequency | 0-590 Hz (programmable) |
| Communication | EtherNet IP (Dual Port) |
| Embedded I/O | Discrete Inputs: Three (3) semi-programmable and Four (4) Fully programmable sink / source inputs Discrete Outputs: Two (2) Form C contacts and One (1) optocoupler output outputs Analog Input: One (1) Unipolar –10…10V or One (1) bipolar 0…10V or 4…20 mA. Analog Output: Two (2) 0-10VDC; 0-20mA |
| Zero Stacking | Supported |
| EMC Filter | Integrated |
| Overcurrent | 200% hardware limit, 300% instantaneous fault |
| Electronic Motor Overload Protection | Class 10 motor overload protection in compliance with NEC article 430; |
| Brand | Allen Bradley |
