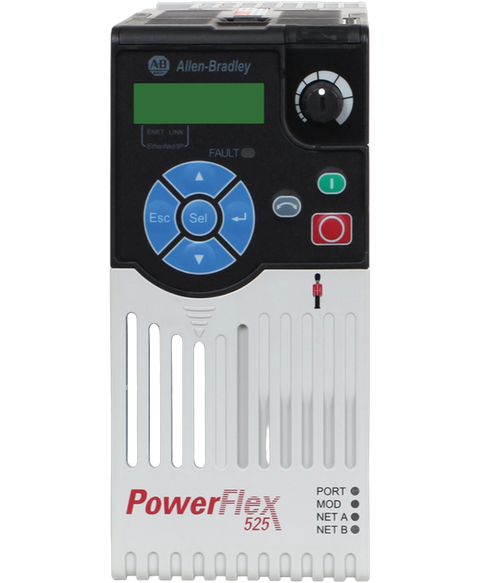

Allen Bradley 25B-V2P5N104
The 25B-V2P5N104 is a PowerFlex 525 Adjustable Frequency AC Drive from Allen-Bradley. This drive operates when supplied with nominal voltage of 120VAC, 1-Phase. It delivers output power of 0.4 kW or 0.5 HP for both normal and heavy-duty operation. The drive’s output Current is 2.5 Amperes with an IP20 NEMA , Open rated enclosure.
This Allen Bradley 25B-V2P5N104 is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Ac drives > Powerflex 520 range and is referenced internally as PartLogic SKU PL26939481802.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | Drives |
| Product Line | PowerFlex 525 |
| Part Number | 25B-V2P5N104 |
| UPC | 884951882843 |
| Weight | 2.38 lbs (1.08 kg) |
| Output Current | 2.5 A |
| Input Voltage | 120VAC |
| Input Phase | 1-Phase |
| Output Voltage | 0-230VAC |
| Output Phase | 3-Phase |
| Output Power | 0.4 kW or 0.5 HP |
| I/O | Discrete Inputs: Seven (7) Sink / Source Discrete Outputs: One (1) N.O.; One (1) N.C. Contacts; Two (2) Digital / Optocoupler Analog Input: Two (2) Analog Input 0-10VDC; 0- 20mA Analog Output: One (1) Analog Input 0-10VDC; 0- 20mA |
| Installation | Panel Mount / DIN Rail |
| Zero Stacking | Supported |
| Enclosure Rating | IP20 / NEMA UL Type Open |
| Control Method | Volts per Hertz (V/Hz), Sensorless Vector Control (SVC), Closed loop velocity vector control, and Permanent Magnet motor control. |
| PointStop Technology | Integrated |
| Integrated safety | Safe-Torque Off (STO) functionality |
| Built-in communication port | Ethernet I/P / RS485 |
| Series | PowerFlex 525 Drive |
| Voltage | One Phase, 120 VAC |
| Enclosure Type | IP20 NEMA / Open Type |
| Interface Module | Standard |
| Frame Size | Frame A |
| EMC Filtering Options | No Filter |
| Brand | Allen Bradley |
