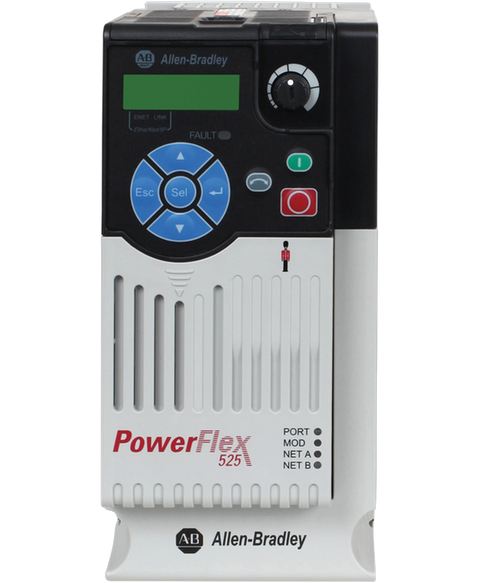

Allen Bradley 25B-E6P6N104
The Allen-Bradley,Rockwell Automation 25B-E6P6N104 drive is an AC-powered adjustable frequency drive from the PowerFlex 525 drive series. It is AC-powered with 3-phase AC input and output voltage. The 25B-E6P6N104 adjustable frequency drive operates at 525 to 600 Volts AC input voltage and at 0 to 575 Volts AC output voltage. It comes with a Size B frame and it does not have a built-in EMC filter. The 25B-E6P6N104 adjustable frequency drive operates with a maximum output current rating of 6.6 Amps and a maximum output power rating of 5 Horsepower or 4 kilowatts.
This Allen Bradley 25B-E6P6N104 is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Ac drives > Powerflex 520 range and is referenced internally as PartLogic SKU PL26948189690.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | Drives |
| Product Line | PowerFlex 525 |
| Part Number | 25B-E6P6N104 |
| UPC | 884951886148 |
| Weight | 3.00 lbs (1.36 kg) |
| Output Current | 6.6 Amperes |
| Input Voltage | 446 - 660 VAC |
| Input Phase | 3-Phase |
| Output Voltage | 0-575VAC |
| Output Power | 5.0 HP or 3.7 kW |
| Embedded I/O | Discrete Inputs: Seven (7) Sink / Source Discrete Outputs: One (1) N.O.; One (1) N.C. Contacts; Two (2) Digital / Optocoupler Analog Input: Two (2) Analog Input 0-10VDC; 0- 20mA Analog Output: One (1) Analog Input 0-10VDC; 0- 20mA |
| Installation | Panel Mount |
| Enclosure Rating | IP20 / NEMA UL Open Type |
| Frame | B |
| Control Method | Volts / Hertz, Sensorless Vector Control (SVC), Closed Loop Velocity Vector Control and Permanent Magnet Motor Control. |
| Built-in communication port | Ethernet; RS485 |
| Optional communication protocols | ProfiBus; Dual-Ethernet; DeviceNet; |
| Integrated Safety | Safe-Torque Off (STO) functionality |
| Human Interface Module (HIM) | Yes; Standard HIM |
| Compatible Controllers | CompactLogix; GuardLogix; ControlLogix |
| Series | PowerFlex 525 Drive |
| Voltage | Three Phase, 600 VAC |
| Enclosure Type | IP20 NEMA / Open Type |
| Interface Module | Standard |
| Frame Size | Frame B |
| EMC Filtering Options | No Filter |
| Brand | Allen Bradley |
