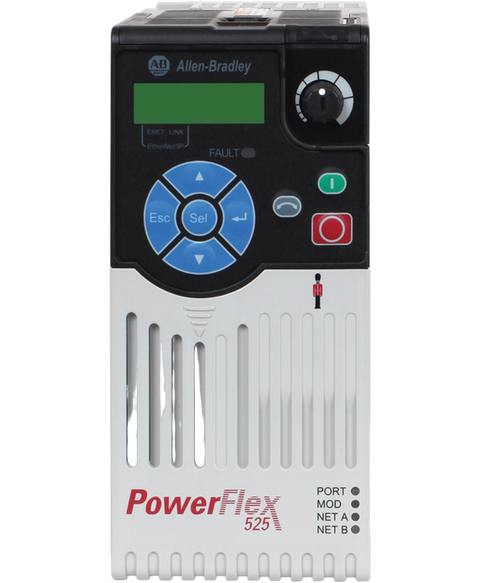

Allen Bradley 25B-E1P7N104
The 25B-E1P7N104 is an adjustable frequency AC drive. This belongs to the PowerFlex 525 drives by Allen-Bradley. It features an input voltage rating of 525-600 VAC, 3-Phase, and an input current of 2.3 Amperes. It has an output voltage of 0-575 VAC, 3-Phase, output current, and power of 1.7 Amperes and 1.0 HP or 0.75 kW for Heavy and normal duty, respectively. This drive is an A-frame drive with a built-in standard interface module and braking. It does not have an integrated EMC filter.
This Allen Bradley 25B-E1P7N104 is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Ac drives > Powerflex 520 range and is referenced internally as PartLogic SKU PL26805664845.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | Drives |
| Product Line | PowerFlex 525 |
| Part Number | 25B-E1P7N104 |
| UPC | 884951886117 |
| Weight | 3.00 lbs (1.36 kg) |
| Series | PowerFlex 525 Drive |
| Drive Category | PowerFlex 525 Adjustable Frequency AC Drive |
| Voltage | Three Phase, 600 VAC |
| Output Current | 1.7 Amperes |
| Input Voltage | 525-600 VAC |
| Enclosure Type | IP20 NEMA / Open Type |
| Input phase | 3-Phase |
| Interface Module | Standard |
| Output Voltage | 0-575VAC |
| Frame Size | Frame A |
| Output Phase | 3-Phase |
| EMC Filtering Options | No Filter |
| Output Power | 1.0 HP or 0.75 kW; Normal and Heavy Duty |
| Discrete Input | Six (6) digital inputs |
| Analog input | Two (2) analog input |
| Discrete output | Two (2) relay output |
| Analog output | One (1) analog output (requires Series B hardware) |
| Braking | Built-in IGBT |
| EMC Filter | None Installed |
| Enclosure | IP20 NEMA/Open |
| Frame | A |
| Communication ports | Ethernet I/P |
| Control Method | V/Hz Control, Closed Loop Velocity Vector Control, Sensorless Vector Control (SVC) and Permanent Magnet Motor Control |
| Brand | Allen Bradley |
