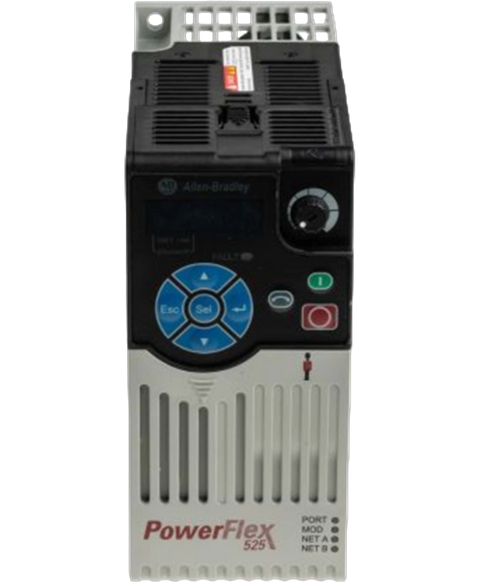

Allen Bradley 25B-D4P0N114
The Allen-Bradley 25B-D4P0N114 is a PowerFlex 525 Adjustable Frequency AC Drive. This drive has a voltage rating of 480VAC, 3-Phase. It has an output power output rating of 1.5 kW or 2.0 HP for normal and heavy-duty operation and output Current of 4.0 Amperes. It has an IP20 NEMA , Open rated enclosure, filtered emission class and standard model drive.
This Allen Bradley 25B-D4P0N114 is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Ac drives > Powerflex 520 range and is referenced internally as PartLogic SKU PL26805537165.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | Drives |
| Product Line | PowerFlex 525 |
| Part Number | 25B-D4P0N114 |
| UPC | 884951886018 |
| Weight | 3.00 lbs (1.36 kg) |
| Output Current | 4.0 A |
| Product Family | PowerFlex 40P |
| Input Voltage | 323-528 VAC |
| Input Phase | 3-Phase |
| Input Current | 5.7 A |
| Output Voltage | 0-460VAC |
| Output Power | 1.5 kW (2.0 HP) |
| I/O | Discrete Inputs: Seven (7) Sink / Source Discrete Outputs: One (1) N.O.; One (1) N.C. Contacts; Two (2) Digital / Optocoupler Analog Input: Two (2) Analog Input 0-10VDC; 0- 20mA Analog Output: One (1) Analog Input 0-10VDC; 0- 20mA |
| Installation | Panel Mount / DIN Rail |
| Zero Stacking | Supported |
| Enclosure Rating | IP20 / NEMA UL Type Open |
| Control Method | Ethernet I/P |
| Series | PowerFlex 525 Drive |
| Voltage | Three Phase, 480 VAC |
| Enclosure Type | IP20 NEMA / Open Type |
| Interface Module | Standard |
| Frame Size | Frame A |
| EMC Filtering Options | Filter |
| Brand | Allen Bradley |
