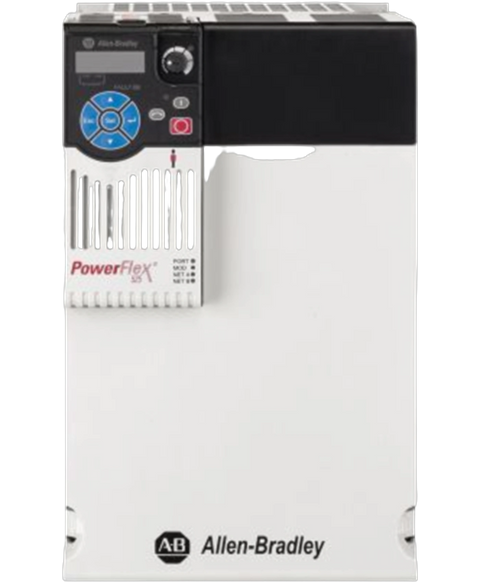

Allen Bradley 25B-D043N114
The Allen-Bradley,Rockwell Automation 25B-D043N114 drive is an adjustable frequency drive or AFD. It has been designed and manufactured as part of the PowerFlex 525 drive series. The 25B-D043N114 adjustable frequency drive supports normal-duty power ratings of 30 Horsepower or 22 kilowatts. It also supports heavy-duty power ratings of 25 Horsepower or 18.5 kilowatts. The 25B-D043N114 adjustable frequency drive has a Size E frame and an output current rating of 43 Amps.
This Allen Bradley 25B-D043N114 is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Ac drives > Powerflex 520 range and is referenced internally as PartLogic SKU PL26935595907.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | Drives |
| Product Line | PowerFlex 525 |
| Part Number | 25B-D043N114 |
| UPC | 884951886094 |
| Weight | 30.00 lbs (13.61 kg) |
| Output Current | 43 A |
| Product Family | PowerFlex 525 Adjustable Frequency AC Drive |
| Input Voltage | 380-480VAC |
| Input Phase | 3-Phase |
| Output Voltage | 0-460VAC |
| Output Power | 22 kW (30.0 HP) for normal operation; 18.5 kW (25.0 HP) heavy-duty operation |
| I/O | Discrete Inputs: Seven (7) Inputs Discrete Outputs: Two (2) Opto Outputs and Two (2) Relay Outputs Analog Input: Two (2) Analog Input Analog output: One (1) analog output |
| Installation | Panel Mount |
| Enclosure Rating | IP20 / NEMA UL Open Type |
| Frame | B |
| Control Method | Volts / Hertz Control; Sensorless Vector Control |
| Built-in communication port | RS485; Ethernet |
| Optional communication protocols | ProfiBus; Ethernet; DeviceNet; |
| Integrated Safety | Safe-Torque Off (STO) functionality |
| EMC Filter | Integrated |
| Series | PowerFlex 525 Drive |
| Voltage | Three Phase, 480V AC |
| Enclosure Type | IP20 NEMA / Open Type |
| Interface Module | Standard |
| Frame Size | Frame E |
| EMC Filtering Options | Filter |
| Brand | Allen Bradley |
