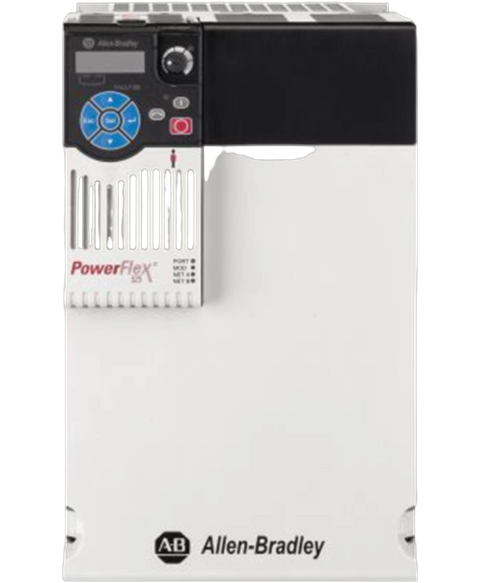

Allen Bradley 25B-D037N114
The Allen-Bradley 25B-D037N114 is a PowerFlex 525 Adjustable Frequency AC Drive. This drive has a voltage rating of 480VAC, 3-Phase. It has an output power rating of 18.5 kW or 25.0 HP for normal and 15.0 kW or 20.0 HP for heavy-duty operation and output Current of 37.0 Amperes. It has an IP20 NEMA , Open rated enclosure, filtered emission class and standard model drive.
This Allen Bradley 25B-D037N114 is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Ac drives > Powerflex 520 range and is referenced internally as PartLogic SKU PL26801461951.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | Drives |
| Product Line | PowerFlex 525 |
| Part Number | 25B-D037N114 |
| UPC | 884951886087 |
| Weight | 31.00 lbs (14.06 kg) |
| Output Current | 37.0 A |
| Input Voltage | 480VAC |
| Input Phase | 3-Phase |
| Output Voltage | 0-460VAC |
| Output Power | 18.5 kW or 25.0 HP for normal and 15.0 kW or 20.0 HP heavy-duty operation |
| I/O | Discrete Inputs: Seven (7) Sink / Source Discrete Outputs: One (1) N.O.; One (1) N.C. Contacts; Two (2) Digital / Optocoupler Analog Input: Two (2) Analog Input 0-10VDC; 0- 20mA Analog Output: One (1) Analog Input 0-10VDC; 0- 20mA |
| Installation | Panel Mount / DIN Rail |
| Zero Stacking | Supported |
| Enclosure Rating | IP20 / NEMA UL Type Open |
| Control Method | Ethernet I/P / RS485 |
| Optional communication protocols | Dual Ethernet I/P; DeviceNet; ProfiBus DP |
| Series | PowerFlex 525 Drive |
| Voltage | Three Phase, 480 VAC |
| Enclosure Type | IP20 NEMA / Open Type |
| Interface Module | Standard |
| Frame Size | Frame E |
| EMC Filtering Options | Filter |
| Brand | Allen Bradley |
