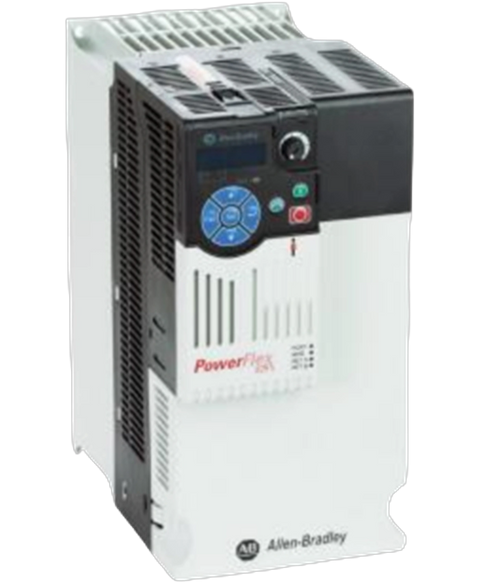

Allen Bradley 25B-D024N114
The 25B-D024N114 drive is an adjustable frequency drive that has been manufactured by Allen-Bradley,Rockwell Automation. It is an AC-powered adjustable frequency drive from the Allen-Bradley PowerFlex 525 series. The 25B-D024N114 drive has a normal-duty output power rating of 15 Horsepower and a heavy-duty output power rating of 15 Horsepower as well. The 25B-D024N114 drive operates with an input voltage range of 323 to 528 Volts AC.
This Allen Bradley 25B-D024N114 is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Ac drives > Powerflex 520 range and is referenced internally as PartLogic SKU PL26805642859.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | Drives |
| Product Line | PowerFlex 525 |
| Part Number | 25B-D024N114 |
| UPC | 884951886063 |
| Weight | 9.00 lbs (4.08 kg) |
| Output Current | 24.0 Amperes |
| Input Voltage | 323-528 VAC |
| Input Phase | 3-Phase |
| Output Voltage | 0-460 VAC |
| Output Power | 15.0 HP or 11.0 kW |
| Embedded I/O | Discrete Inputs: Seven (7) Sink / Source Discrete Outputs: One (1) N.O.; One (1) N.C. Contacts; Two (2) Digital / Optocoupler Analog Input: Two (2) Analog Input 0-10VDC; 0- 20mA Analog Output: One (1) Analog Input 0-10VDC; 0- 20mA |
| Installation | Panel Mount |
| Enclosure Rating | IP20 / NEMA UL Open Type |
| Frame | D |
| Control Method | Volts / Hertz, Sensorless Vector Control (SVC), Closed Loop Velocity Vector Control and Permanent Magnet Motor Control. |
| Built-in communication port | Ethernet; RS485 |
| Optional communication protocols | ProfiBus; Dual-Ethernet; DeviceNet; |
| Integrated Safety | Safe-Torque Off (STO) functionality |
| Human Interface Module (HIM) | Yes; Standard HIM |
| Compatible Controllers | CompactLogix; GuardLogix; ControlLogix |
| Series | PowerFlex 525 Drive |
| Voltage | Three Phase, 480 VAC |
| Enclosure Type | IP20 NEMA / Open Type |
| Interface Module | Standard |
| Frame Size | Frame D |
| EMC Filtering Options | Filter |
| Brand | Allen Bradley |
