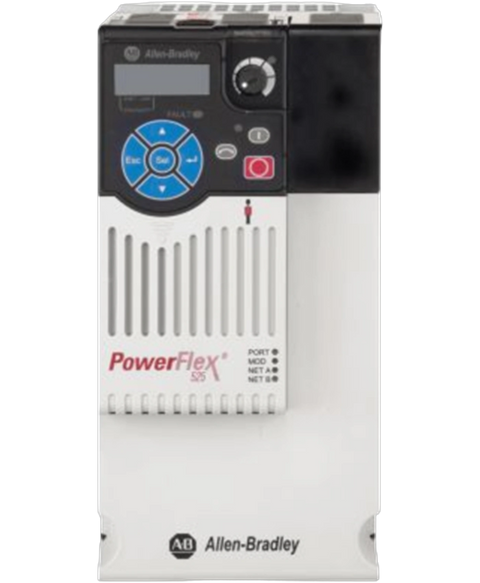

Allen Bradley 25B-D017N114
The Allen-Bradley 25B-D017N114 adjustable frequency drive is a PowerFlex 525 series adjustable frequency drive. Its normal duty and heavy-duty output power ratings are the same. The normal duty and heavy-duty output power ratings for the 25B-D017N114 adjustable frequency drive are both 10 Horsepower or 7.5 kilowatts. Its rated output current is 17 Amps. The 25B-D017N114 adjustable frequency drive is protected by an IP 20-rated enclosure.
This Allen Bradley 25B-D017N114 is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Ac drives > Powerflex 520 range and is referenced internally as PartLogic SKU PL26933277575.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | Drives |
| Product Line | PowerFlex 525 |
| Part Number | 25B-D017N114 |
| UPC | 884951886056 |
| Weight | 4.81 lbs (2.18 kg) |
| Output Current | 17 A |
| Input Voltage | 323-528 VAC |
| Input Phase | 3-Phase |
| Output Voltage | 0-460VAC |
| Output Power | 7.5 kW or 10 HP |
| I/O | Discrete Inputs: Seven (7) Sink / Source Discrete Outputs: One (1) N.O.; One (1) N.C. Contacts; Two (2) Digital / Optocoupler Analog Input: Two (2) Analog Input 0-10VDC; 0- 20mA Analog Output: One (1) Analog Input 0-10VDC; 0- 20mA |
| Installation | Panel Mount / DIN Rail |
| Zero Stacking | Supported |
| Enclosure Rating | IP20 / NEMA UL Type Open |
| Control Method | Volts per Hertz (V/Hz), Sensorless Vector Control (SVC), Closed loop velocity vector control, and Permanent Magnet motor control. |
| PointStop Technology | Integrated |
| Integrated safety | Safe-Torque Off (STO) functionality |
| Built-in communication port | Ethernet I/P / RS485 |
| Series | PowerFlex 525 Drive |
| Voltage | Three Phase, 480 VAC |
| Enclosure Type | IP20 NEMA / Open Type |
| Interface Module | Standard |
| Frame Size | Frame C |
| EMC Filtering Options | Filter |
| Brand | Allen Bradley |
