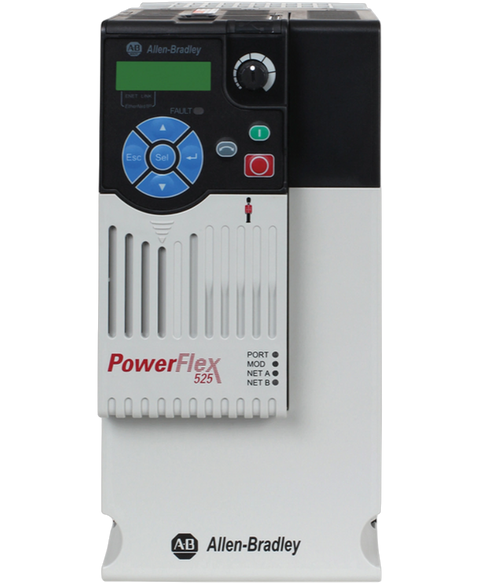

Allen Bradley 25B-D017N104
The Allen-Bradley 25B-D017N104 is a PowerFlex 525 Adjustable Frequency AC Drive. This drive has a voltage rating of 480VAC, 3-Phase. It has an output power output rating of 7.5 kW or 10.0 HP for normal and heavy-duty operation and output Current of 17.0 Amperes. It has an IP20 NEMA , Open rated enclosure and standard model drive.
This Allen Bradley 25B-D017N104 is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Ac drives > Powerflex 520 range and is referenced internally as PartLogic SKU PL26805559516.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Product Type | 3-Phase Drive |
| Product Line | PowerFlex 525 |
| Part Number | 25B-D017N104 |
| UPC | 884951885936 |
| Weight | 5.00 lbs (2.27 kg) |
| Output Current | 17.0 A |
| Output Voltage | 0-460VAC |
| Product Family | PowerFlex 40P |
| Input Voltage | 323-528 VAC |
| Input Phase | 3-Phase |
| Output Power | 7.5 kW or 10.0 HP |
| I/O | Discrete Inputs: Seven (7) Sink / Source Discrete Outputs: One (1) N.O.; One (1) N.C. Contacts; Two (2) Digital / Optocoupler Analog Input: Two (2) Analog Input 0-10VDC; 0- 20mA Analog Output: One (1) Analog Input 0-10VDC; 0- 20mA |
| Installation | Panel Mount / DIN Rail |
| Zero Stacking | Supported |
| Enclosure Rating | IP20 / NEMA UL Type Open |
| Control Method | Ethernet I/P |
| Built-in communication port | Ethernet I/P / RS485 |
| Series | PowerFlex 525 Drive |
| Enclosure Type | IP20 NEMA / Open Type |
| Interface Module | Standard |
| Frame Size | Frame C |
| EMC Filtering Options | No Filter |
| Voltage | Three Phase, 480 VAC |
| Brand | Allen Bradley |
