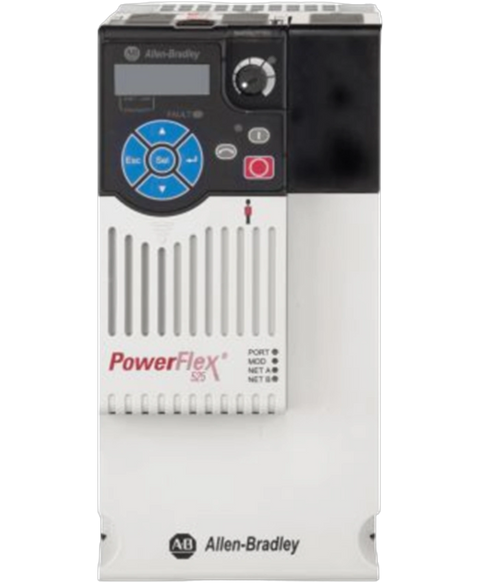

Allen Bradley 25B-D013N114
The 25B-D013N114 drive is an adjustable frequency drive from the Allen-Bradley,Rockwell Automation PowerFlex 525 series. This PowerFlex 525 series drive comes with an EMC filter. The 25B-D013N114 adjustable frequency drive has a 3-phase input voltage range of 380 to 480 Volts AC and a 3-phase output voltage range of 0 to 460 Volts AC. It can be mounted on a panel or a DIN Rail, and it is protected by an IP 20 rated enclosure. The 25B-D013N114 adjustable frequency drive has an integrated STO or safe torque off functionality.
This Allen Bradley 25B-D013N114 is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Ac drives > Powerflex 520 range and is referenced internally as PartLogic SKU PL26945038450.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | Drives |
| Product Line | PowerFlex 525 |
| Part Number | 25B-D013N114 |
| UPC | 884951886049 |
| Weight | 4.56 lbs (2.07 kg) |
| Output Current | 13 A |
| Input Voltage | 323-528 VAC |
| Input Phase | 3-Phase |
| Output Voltage | 0-460VAC |
| Output Power | 5.5 kW or 7.5 HP |
| I/O | Discrete Inputs: Seven (7) Sink / Source Discrete Outputs: One (1) N.O.; One (1) N.C. Contacts; Two (2) Digital / Optocoupler Analog Input: Two (2) Analog Input 0-10VDC; 0- 20mA Analog Output: One (1) Analog Input 0-10VDC; 0- 20mA |
| Installation | Panel Mount / DIN Rail |
| Zero Stacking | Supported |
| Enclosure Rating | IP20 / NEMA UL Type Open |
| Control Method | Volts per Hertz (V/Hz), Sensorless Vector Control (SVC), Closed loop velocity vector control, and Permanent Magnet motor control. |
| PointStop Technology | Integrated |
| Integrated safety | Safe-Torque Off (STO) functionality |
| Built-in communication port | Ethernet I/P / RS485 |
| Series | PowerFlex 525 Drive |
| Voltage | Three Phase, 480 VAC |
| Enclosure Type | IP20 NEMA / Open Type |
| Interface Module | Standard |
| Frame Size | Frame C |
| EMC Filtering Options | Filter |
| Brand | Allen Bradley |
