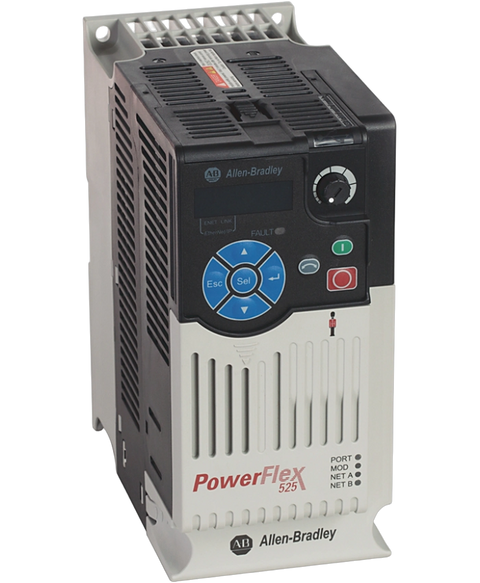

Allen Bradley 25B-D010N104
The Allen-Bradley 25B-D010N104 is a PowerFlex 525 Variable Frequency Drive (VFD). This VFD is powered with an input voltage range of 323-528VAC, 3-phase with applicable motor output 10.5 A and Power of 4.0 kW (5.0 HP) for normal duty and Heavy duty operation.
This Allen Bradley 25B-D010N104 is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Ac drives > Powerflex 520 range and is referenced internally as PartLogic SKU PL26801369286.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Product Type | Adjustable Frequency AC Drive |
| Product Line | PowerFlex 525 |
| Part Number | 25B-D010N104 |
| UPC | 884951885912 |
| Weight | 3.00 lbs (1.36 kg) |
| Output Current | 10.5 A |
| Product Family | PowerFlex 40P |
| Input Voltage | 323-528 VAC |
| Input Phase | 3-Phase |
| Input Current | 13.8 A |
| Output Voltage | 0-460VAC |
| Output Power | 4.0 kW (5.0 HP) |
| I/O | Discrete Inputs: Seven (7) Sink / Source Discrete Outputs: One (1) N.O.; One (1) N.C. Contacts; Two (2) Digital / Optocoupler Analog Input: Two (2) Analog Input 0-10VDC; 0- 20mA Analog Output: One (1) Analog Input 0-10VDC; 0- 20mA |
| Installation | Panel Mount / DIN Rail |
| Enclosure Rating | IP20 / NEMA UL Type Open |
| Built-in communication port | Ethernet I/P |
| Optional communication protocols | Dual Ethernet I/P; DeviceNet; ProfiBus DP |
| Series | PowerFlex 525 Drive |
| Enclosure Type | IP20 NEMA / Open Type |
| Interface Module | Standard |
| Frame Size | Frame B |
| EMC Filtering Options | No Filter |
| Voltage | Three Phase, 480V AC |
| Communication | Ethernet/IP, RS-485 |
| Brand | Allen Bradley |
