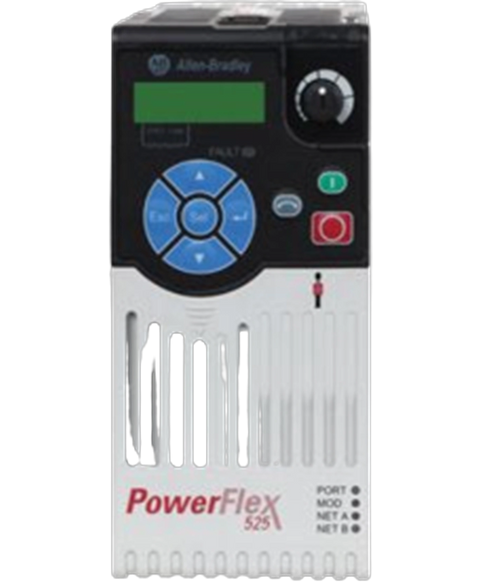

Allen Bradley 25B-B8P0N104
The Allen-Bradley 25B-B8P0N104 PowerFlex 525 adjustable frequency AC drive. This drive features an input voltage range of 200-240VAC, 3-phase and delivers output voltage of 0-230VAC, 3-Phase, with rated Current of 8.0 A and Power of 1.5 kW (2.0 HP) for both normal and heavy-duty operation. It has an integral RS485 and Dual Ethernet communication interface. It is capable of Volts , Hertz, Sensorless Vector Control (SVC), Closed loop velocity vector control and Permanent Magnet motor control method.
This Allen Bradley 25B-B8P0N104 is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Ac drives > Powerflex 520 range and is referenced internally as PartLogic SKU PL26805537233.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | Drives |
| Product Line | PowerFlex 525 |
| Part Number | 25B-B8P0N104 |
| UPC | 884951885714 |
| Weight | 2.38 lbs (1.08 kg) |
| Output Current | 8.0 A |
| Product Family | PowerFlex 525 Adjustable Frequency AC Drive |
| Input Voltage | 200-240VAC |
| Input Phase | 3-Phase |
| Output Voltage | 0-230VAC |
| Output Power | 1.5 kW (2.0 HP) |
| I/O | Discrete Inputs: Seven (7) Inputs Discrete Outputs: Two (2) Opto Outputs and Two (2) Relay Outputs Analog Input: Two (2) Analog Input Analog output: One (1) analog output |
| Installation | Panel Mount |
| Enclosure Rating | IP20 / NEMA UL Open Type |
| Frame | A |
| Control Method | Volts / Hertz Control; Sensorless Vector Control |
| Built-in communication port | RS485; Ethernet |
| Optional communication protocols | ProfiBus; Ethernet; DeviceNet; |
| Integrated Safety | Safe-Torque Off (STO) functionality |
| Series | PowerFlex 525 Drive |
| Voltage | Three Phase, 240V AC |
| Enclosure Type | IP20 NEMA / Open Type |
| Interface Module | Standard |
| Frame Size | Frame A |
| EMC Filtering Options | No Filter |
| Brand | Allen Bradley |
