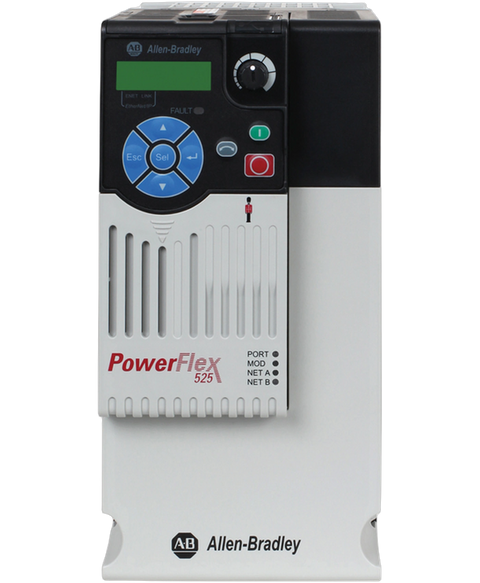

Allen Bradley 25B-B024N104
The Allen-Bradley 25B-B024N104 is an adjustable frequency AC drive. This drive is part of the PowerFlex 525 product category that is used for implementing Speed and Torque control of industrial AC motors. It is operated with an input supply voltage range of 170-264 VAC with tolerance of -15% , +10%; 3-phase and frequency range of 47-63 Hz. It has an applicable motor current output and power of 24.0 Amperes and 7.5 HP or 5.5 kW for both normal and heavy-duty operation. This drive supports Sinusoidal PWM, Volts,Hertz, Sensorless Vector Control, Economizer SVC motor control, Closed Loop Velocity Vector Control, Surface Mount and Interior Permanent Magnet Motor (without encoder), Interior Permanent Magnet Motor (with encoder).
This Allen Bradley 25B-B024N104 is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Ac drives > Powerflex 520 range and is referenced internally as PartLogic SKU PL26938903812.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | Drives |
| Product Line | PowerFlex 525 |
| Part Number | 25B-B024N104 |
| UPC | 884951885806 |
| Weight | 5.00 lbs (2.27 kg) |
| Series | PowerFlex 525 Drive |
| Product Family | PowerFlex 523 |
| Voltage | Three Phase, 240 VAC |
| Output Current | 24 Amperes |
| Input Voltage range | 170-264 VAC, 3-Phase |
| Enclosure Type | IP20 NEMA / Open Type |
| Nominal input voltage | 200-240 VAC, 3-Phase |
| Interface Module | Standard |
| Output voltage range | 0-230 VAC, 3-Phase |
| Frame Size | Frame C |
| EMC Filtering Options | No Filter |
| Output Power | 5.5 kW or 7.5 HP |
| Output frequency | 0-500 Hz (programmable) |
| Embedded I/O | Discrete Inputs: Seven (7) Sink / Source Discrete Outputs: One (1) N.O.; One (1) N.C. Contacts; Two (2) Digital / Optocoupler Analog Input: Two (2) Analog Input 0-10VDC; 0- 20mA Analog Output: One (1) Analog Input 0-10VDC; 0- 20mA |
| Installation | Panel Mount / DIN Rail |
| Zero Stacking | Supported |
| Enclosure Rating | IP20 / NEMA UL Type Open |
| Built-in communication port | RS485 / Ethernet I/P |
| Control Method | Volts per Hertz (V/Hz), Sensorless Vector Control (SVC), Closed loop velocity vector control |
| Efficiency | 97.50% |
| Stop Modes | Multiple programmable stop modes including – Ramp, Coast, DC-Brake, and Ramp-to-Stop |
| Programmable Acceleration / Deceleration | Four (4) independently programmable accel and decel times with resolution of 0.01 seconds up to 600 seconds. |
| Brand | Allen Bradley |
