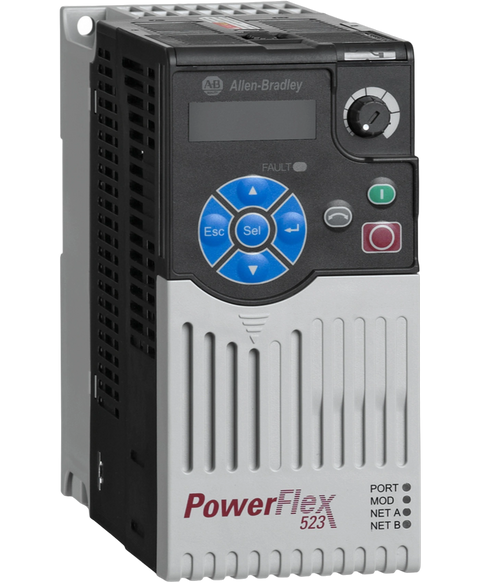

Allen Bradley 25A-D6P0N104
The Allen-Bradley 25A-D6P0N104 is a PowerFlex 523 Variable Frequency Drive (VFD). This VFD is powered with an input voltage range of 323-528VAC, 3-phase with applicable motor output 6.0 A and Power of 3.0kW (2.2 HP) for normal duty and Heavy duty operation.
This Allen Bradley 25A-D6P0N104 is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Ac drives > Powerflex 520 range and is referenced internally as PartLogic SKU PL26966562925.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | Drives |
| Product Line | PowerFlex 523 |
| Part Number | 25A-D6P0N104 |
| UPC | 885630702513 |
| Weight | 2.00 lbs (0.91 kg) |
| Output Current | 6.0 A |
| Product Family | PowerFlex 40P |
| Input Voltage | 323-528 VAC |
| Input Phase | 3-Phase |
| Input Current | 7.5 A |
| Output Voltage | 0-460VAC |
| Output Power | 3.0kW (2.2 HP) |
| I/O | Discrete Inputs: Five (5) Sink / Source Discrete Outputs: One (1) Form C Contacts Analog Input: One (1) Analog Input 0-10VDC; 0- 20mA Analog Output: One (1) Analog Input 0-10VDC; 0- 20mA (For Series B drive) |
| Installation | Panel Mount / DIN Rail |
| Enclosure Rating | IP20 / NEMA UL Type Open |
| Built-in communication port | RS485 |
| Optional communication protocols | Ethernet I/P; DeviceNet; ProfiBus DP |
| Voltage | Three Phase, 480 VAC |
| Enclosure Type | IP20 NEMA / Open Type |
| Interface Module | Standard |
| Frame Size | Frame A |
| EMC Filtering Option | Single |
| Brand | Allen Bradley |
