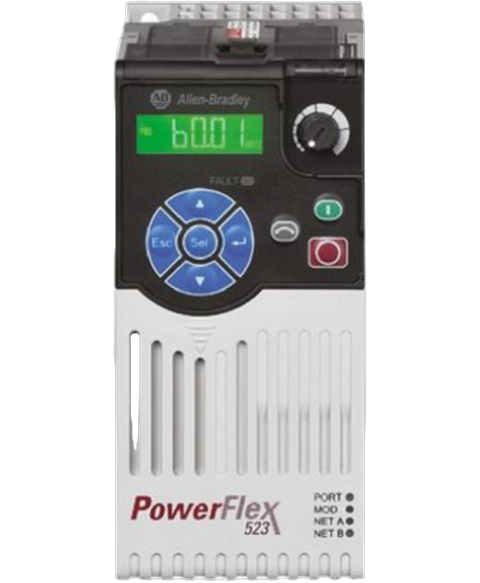

Allen Bradley 25A-D2P3N114
The 25A-D2P3N104 is an adjustable frequency AC drive. This belongs to the PowerFlex 523 drives by Allen-Bradley. It features an input voltage rating of 380-480 VAC, 3-Phase, and an input current of 3.2 Amperes. It has an output voltage of 0-460 VAC, 3-Phase; This drive has an output current and power of 2.3 Amperes and 1.0 HP or 0.75 kW for Heavy and normal duty. This drive is an A-frame drive with a built-in standard interface module and braking. It does not have an integrated EMC filter.
This Allen Bradley 25A-D2P3N114 is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Ac drives > Powerflex 520 range and is referenced internally as PartLogic SKU PL26966546949.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | Drives |
| Product Line | PowerFlex 523 |
| Part Number | 25A-D2P3N114 |
| UPC | 885630702568 |
| Weight | 2.44 lbs (1.11 kg) |
| Drive Category | PowerFlex 523 Adjustable Frequency AC Drive |
| Voltage | Three Phase, 480 VAC |
| Output Current | 2.3 Amperes |
| Input Voltage | 380-480 VAC |
| Enclosure Type | IP20 NEMA / Open Type |
| Input phase | 3-Phase |
| Interface Module | Standard |
| Output Voltage | 0-460VAC |
| Frame Size | Frame A |
| Output Phase | 3-Phase |
| EMC Filtering Option | Single |
| Output Power | 1.0 HP or 0.75 kW; Normal and Heavy Duty |
| Discrete Input | Five (5) digital inputs |
| Analog input | One (1) analog input |
| Discrete output | One (1) relay output |
| Analog output | One (1) analog output (requires Series B hardware) |
| Braking | Built-in IGBT |
| EMC Filter | None Installed |
| Enclosure | IP20 NEMA/Open |
| Frame | A |
| Communication ports | RS485 |
| Control Method | Volts per Hertz (V/Hz), Sensorless Vector Control (SVC), SVC with economizer |
| Brand | Allen Bradley |
