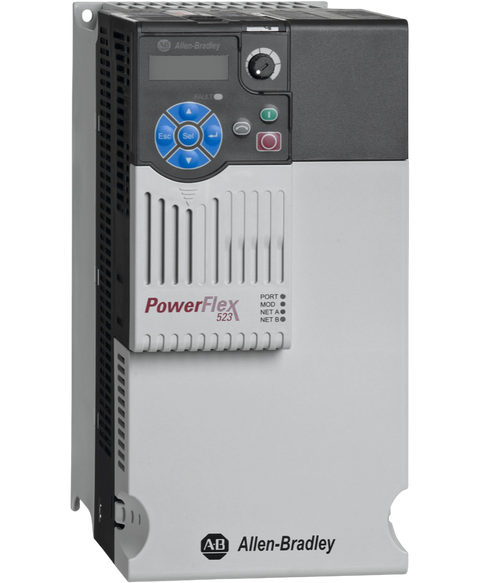

Allen Bradley 25A-D030N104
The Allen-Bradley 25A-D030N104 AC drive has been designed and manufactured as a member of the Allen-Bradley,Rockwell Automation PowerFlex 523 drive series. Its 3-phase input voltage range is from 380 to 480 Volts AC and its 3-phase output voltage range is from 0 to 460 Volts AC. The 25A-D030N104 AC drive also has an operating input voltage range of 323 to 528 Volts AC. It can support standard Volts,Hertz control and the more specialized sensorless vector control. The 25A-D030N104 AC drive a Size D frame and a current rating of 30 Amps.
This Allen Bradley 25A-D030N104 is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Ac drives > Powerflex 520 range and is referenced internally as PartLogic SKU PL26935145843.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | Drives |
| Product Line | PowerFlex 523 |
| Part Number | 25A-D030N104 |
| UPC | 885630952437 |
| Weight | 8.00 lbs (3.63 kg) |
| Output Current | 30 A |
| Input Voltage | 323-528 VAC |
| Input Phase | 3-Phase |
| Output Voltage | 0-460VAC |
| Output Power | 20.0 HP (15.0 kW) Normal Duty; 15.0 HP (11.0 kW) Heavy Duty; |
| Embedded I/O | Discrete Inputs: Five (5) Inputs Discrete Outputs: One (1) Form C Contacts Analog Input: One (1) Analog Input Analog output: One (1) analog output |
| Installation | Panel Mount |
| Enclosure Rating | IP20 / NEMA UL Open Type |
| Frame | D |
| Control Method | Volts / Hertz Control; Sensorless Vector Control; Sensorless Vector Economizer |
| Built-in communication port | RS485 |
| Integrated Safety | Safe-Torque Off (STO) functionality |
| Human Interface Module (HIM) | Yes; Standard HIM |
| Compatible Controllers | CompactLogix; GuardLogix; ControlLogix |
| Voltage | Three Phase, 480 VAC |
| Enclosure Type | IP20 NEMA / Open Type |
| Interface Module | Standard |
| Frame Size | Frame D |
| EMC Filtering Option | No Filtering |
| Brand | Allen Bradley |
