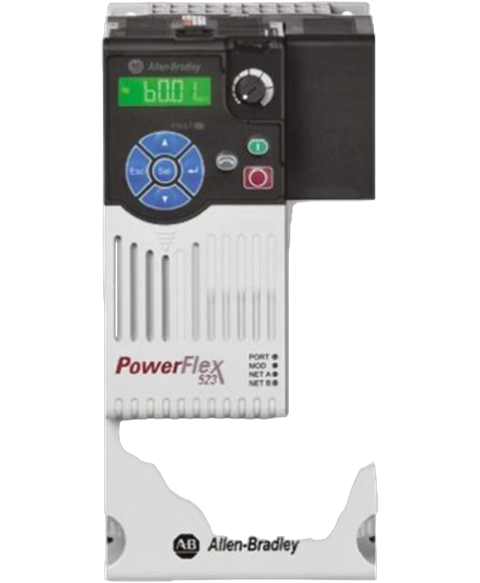

Allen Bradley 25A-D017N114
The 25A-D017N114 variable frequency drive is part of Allen Bradley's PowerFlex 523 series. Designed for 3-phase applications, it operates within an input voltage range of 380-480V AC and supports 50,60 Hz input frequencies. With a maximum output current of 17 Amps, this drive can manage motor power ratings up to 7.5 kW (10 HP).
This Allen Bradley 25A-D017N114 is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Ac drives > Powerflex 520 range and is referenced internally as PartLogic SKU PL26945112919.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Product Type | Variable Frequency Drive (AC Drive) |
| Product Line | PowerFlex 523 |
| Part Number | 25A-D017N114 |
| UPC | 885630702612 |
| Weight | 6.00 lbs (2.72 kg) |
| Input Voltage | 380-480V AC, 3-Phase |
| Input Frequency | 50/60 Hz |
| Output Current | 17 Amps |
| Rated Motor Power | 7.5 kW / 10 Horsepower |
| Duty Cycle Rating | Normal and Heavy Duty at 7.5kW/10HP |
| Maximum Output Frequency | 500 Hz |
| Enclosure Protection | IP20 Open Type |
| Control Methods | V/Hz and Sensorless Vector Control |
| Integrated Communication Ports | 1x RS-485 (DSI), 1x USB Port |
| Digital Inputs | 5 Inputs |
| Digital Outputs | 2 Outputs |
| Analog Inputs | 1 Input |
| Analog Outputs | 1 Output |
| Brand | Allen Bradley |
