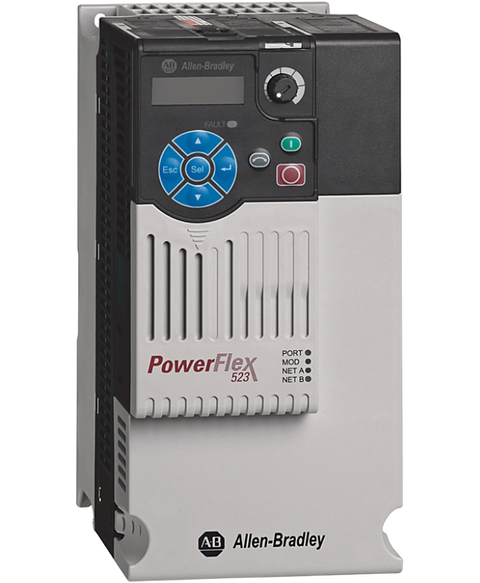

Allen Bradley 25A-D017N104
The 25A-D017N104 is a PowerFlex 523 Adjustable Frequency AC Drive from Allen-Bradley. This drive operates when supplied with voltage of 480VAC, 3-Phase. It delivers output power of 7.5 kW or 10.0 HP for both normal and heavy-duty operation. The drive’s output Current is 17 Amperes with an IP20 NEMA , Open rated enclosure.
This Allen Bradley 25A-D017N104 is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Ac drives > Powerflex 520 range and is referenced internally as PartLogic SKU PL26805662309.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | Drives |
| Product Line | PowerFlex 523 |
| Part Number | 25A-D017N104 |
| UPC | 885630702544 |
| Weight | 5.00 lbs (2.27 kg) |
| Output Current | 17 A |
| Input Voltage | 380-480 VAC |
| Input Phase | 3-Phase |
| Output Voltage | 0-460VAC |
| Output Power | 7.5 kW or 10.0 HP |
| I/O | Discrete Inputs: Five (5) Sink / Source Discrete Outputs: One (1) N.O.; One (1) N.C. Contacts; Analog Input: Two (2) Analog Input 0-10VDC; 0- 20mA Analog Output: One (1) Analog Input 0-10VDC; 0- 20mA |
| Installation | Panel Mount / DIN Rail |
| Zero Stacking | Supported |
| Enclosure Rating | IP20 / NEMA UL Type Open |
| Control Method | Volts per Hertz (V/Hz), Sensorless Vector Control (SVC), Closed loop velocity vector control, and Permanent Magnet motor control. |
| PointStop Technology | Integrated |
| Integrated safety | Safe-Torque Off (STO) functionality |
| Built-in communication port | RS485 |
| Voltage | Three Phase, 480 VAC |
| Enclosure Type | IP20 NEMA / Open Type |
| Interface Module | Standard |
| Frame Size | Frame C |
| EMC Filtering Option | No Filtering |
| Brand | Allen Bradley |
