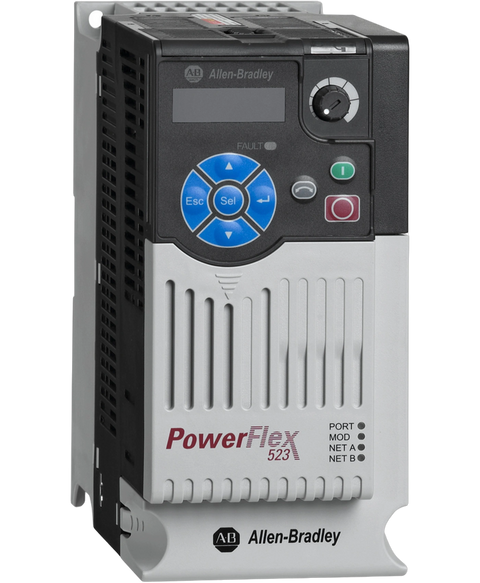

Allen Bradley 25A-D010N104
The Allen-Bradley 25A-D010N104 PowerFlex 523 adjustable frequency AC drive. This drive features an input voltage range of 380-480VAC, 3-phase and delivers output voltage of 0-460VAC, 3-Phase, with rated Current of 10.5 A and Power of 4 kW (5 HP) for both normal and heavy duty operation. It has an integral RS485 communication interface. It is capable of Volts , Hertz and Sensorless Vector Control (SVC) method.
This Allen Bradley 25A-D010N104 is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Ac drives > Powerflex 520 range and is referenced internally as PartLogic SKU PL26805544433.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | Drives |
| Product Line | PowerFlex 523 |
| Part Number | 25A-D010N104 |
| UPC | 885630702520 |
| Weight | 2.50 lbs (1.13 kg) |
| Output Current | 10.5 A |
| Product Family | PowerFlex 523 Adjustable Frequency AC Drive |
| Input Voltage | 380-480VAC |
| Input Phase | 3-Phase |
| Output Voltage | 0-460VAC |
| Output Power | 4kW (5 HP) |
| I/O | Discrete Inputs: Five (5) Inputs Discrete Outputs: One (1) Form C Contacts Analog Input: One (1) Analog Input Analog output: One (1) analog output |
| Installation | Panel Mount |
| Enclosure Rating | IP20 / NEMA UL Open Type |
| Frame | B |
| Control Method | Volts / Hertz Control; Sensorless Vector Control |
| Built-in communication port | RS485 |
| Optional communication protocols | ProfiBus; Ethernet; DeviceNet; |
| Voltage | Three Phase, 480 VAC |
| Enclosure Type | IP20 NEMA / Open Type |
| Interface Module | Standard |
| Frame Size | Frame B |
| EMC Filtering Option | No Filtering |
| UNSPSC | 39122001 |
| Brand | Allen Bradley |
