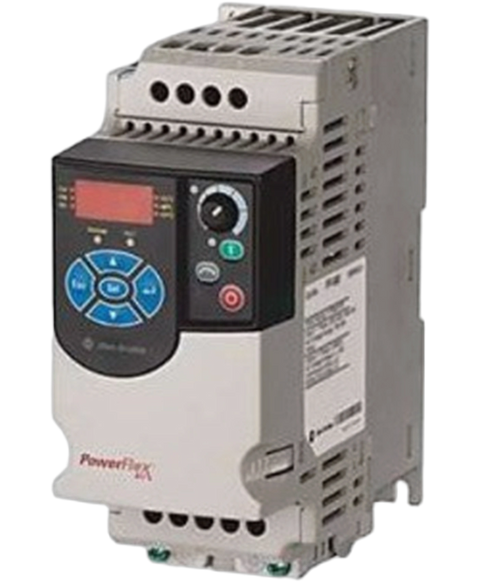

Allen Bradley 22F-V2P5N103
The Allen-Bradley 22F-V2P5N103 PowerFlex 4M adjustable frequency AC drive. This drive features an input voltage range of 100-120VAC, 1-phase and delivers output voltage of 0-230VAC, 3-Phase, with rated Current of 2.5 A and Power of 0.4 kW (0.5 HP). It has an integral RS485 communication interface.
This Allen Bradley 22F-V2P5N103 is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Ac drives > Powerflex 520 range and is referenced internally as PartLogic SKU PL26948734175.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | Drives |
| Product Line | PowerFlex 4M |
| Part Number | 22F-V2P5N103 |
| UPC | 820919784934 |
| Weight | 0.75 lbs (0.34 kg) |
| Product Family | PowerFlex 4M Adjustable Frequency AC Drive |
| Input Voltage | 100-120VAC |
| Input Phase | 1-Phase |
| Input Current | 9.0 A |
| Output Voltage | 0-460VAC |
| Output Phase | 3-Phase |
| Output Current | 2.5 A |
| Output Power | 0.4 kW (0.5 HP) |
| I/O | Discrete Inputs: Five (7) Sink / Source Discrete Outputs: One (1) Form C Contacts Analog Input: One (1) Analog Input 0-10VDC; 0- 20mA |
| Installation | Panel Mount |
| Enclosure Rating | IP20 / NEMA UL Open Type |
| Frame | A |
| Control Method | Volts / Hertz Control performance |
| Built-in communication port | RS485 |
| Optional communication protocols | BacNet; LonWorks; ProfiBus; Ethernet; DeviceNet; ControlNet |
| Amperage | 1.6 |
| Wattage | 0.37 Kilowatt |
| Enclosure Type | Open- IP20 |
| Input Power | 120 Volts- Alternating Current |
| Phase | One-Phase |
| Filter | Without CE Compliant Filter |
| Horsepower | 0.5 Horsepower |
| Brand | Allen Bradley |
