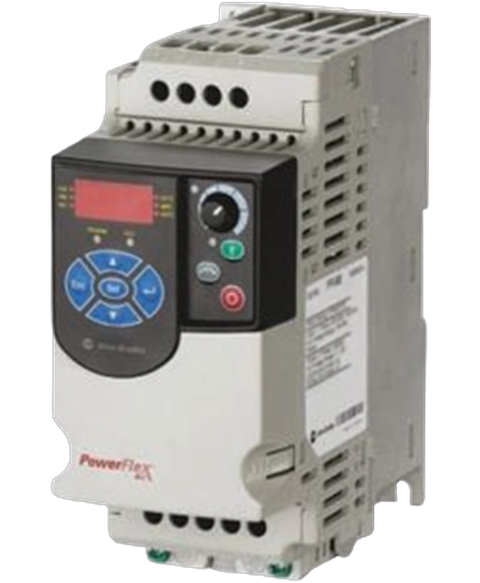

Allen Bradley 22F-D4P2N113
The 22F-D4P2N113 is an adjustable frequency AC drive. This belongs to the PowerFlex 4M drive-by Allen-Bradley. It features an input voltage rating of 380-480 VAC, 3-Phase, and an input current of 3.5 Amperes. It has an output voltage of 0-460 VAC, 3-Phase, output current, and power of 4.2 Amperes and 2.0 HP or 1.5 kW. This drive is an A-frame drive with a built-in fixed keypad Human Interface Module (HIM) and EMC filter without an IGBT brake.
This Allen Bradley 22F-D4P2N113 is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Ac drives > Powerflex 520 range and is referenced internally as PartLogic SKU PL26947072125.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | Drives |
| Product Line | PowerFlex 4M |
| Part Number | 22F-D4P2N113 |
| UPC | 820919785269 |
| Weight | 2.69 lbs (1.22 kg) |
| Drive Category | PowerFlex 4M Adjustable Frequency AC Drive |
| Amperage | 4.2 |
| Wattage | 1.5 Kilowatt |
| Input Voltage | 380-480 VAC |
| Enclosure Type | Open- IP20 |
| Input phase | 3-Phase |
| Input Power | 480 Volts- Alternating Current |
| Output Voltage | 0-460VAC |
| Phase | Three-Phase |
| Output Phase | 3-Phase |
| Filter | With Internal CE Compliant Filter |
| Output Power | 2.0 HP or 1.5 kW |
| Horsepower | 2 Horsepower |
| Output current | 4.2 A |
| Discrete Input | Five (5) 24 VDC discrete inputs |
| Analog input | Two (2) analog input |
| Discrete output | Two (2) Form C relay output |
| Braking | Non installed |
| EMC Filter | Installed |
| Enclosure | IP20 NEMA/Open |
| Frame | B |
| Interface Module | Standard keypad |
| Communication ports | RS485 |
| Control Method | V/Hz Control |
| Brand | Allen Bradley |
