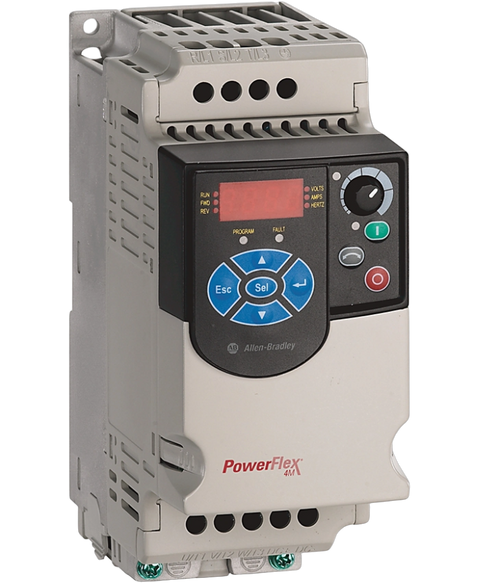

Allen Bradley 22F-D4P2N103
The 22F-D4P2N103 is an Adjustable Frequency AC drive from the PowerFlex 4M produc family. This drive is manufactured by Allen-Bradley that features an input voltage range of 380-480VAC, 3-phase. It delivers an output voltage range of 0-460VAC, 3-Phase, with applicable motor current of 4.2 A and Power of 1.5 kW (2.0 HP). This drive come with an integra RS485 communication interface.
This Allen Bradley 22F-D4P2N103 is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Ac drives > Powerflex 520 range and is referenced internally as PartLogic SKU PL26801461690.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | Drives |
| Product Line | PowerFlex 4M |
| Part Number | 22F-D4P2N103 |
| UPC | 820919785184 |
| Weight | 2.44 lbs (1.11 kg) |
| Input Voltage | 380-480VAC |
| Input Phase | 3-Phase |
| Input Current | 6.0 A |
| Output Voltage | 0-460VAC |
| Output Current | 4.2 A |
| Output Power | 1.5 kW (2.0 HP |
| Output frequency | 0-400 Hz |
| Efficiency | 0.975 |
| I/O | Discrete Inputs: Five (5) Sink / Source Discrete Outputs: One (1) Form C Contacts Analog Input: One (1) Analog Input 0-10VDC; 0- 20mA |
| Installation | Panel Mount |
| Enclosure Rating | IP20 / NEMA UL Open Type |
| Frame | B |
| Control Method | Volts / Hertz Control performance |
| Built-in communication port | RS485 |
| Optional communication protocols | BacNet; LonWorks; ProfiBus; Ethernet; DeviceNet; ControlNet |
| Amperage | 4.2 |
| Wattage | 1.5 Kilowatt |
| Enclosure Type | Open- IP20 |
| Input Power | 480 Volts- Alternating Current |
| Phase | Three-Phase |
| Filter | Without CE Compliant Filter |
| Horsepower | 2 Horsepower |
| Brand | Allen Bradley |
