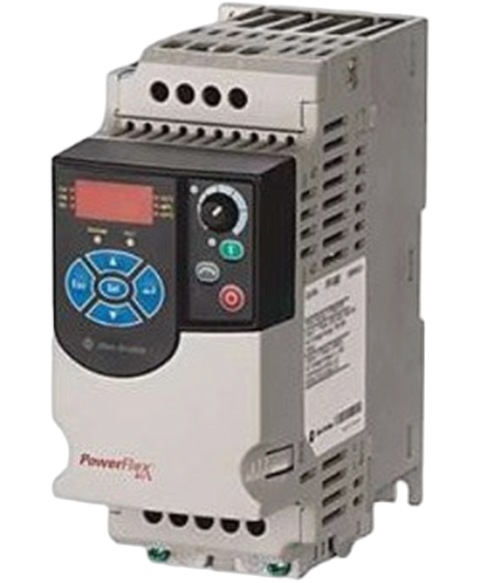

Allen Bradley 22F-D2P5N113
The 22F-D2P5N113 AC drive is an Allen-Bradley,Rockwell Automation PowerFlex 4M series AC drive with an integral filter. Its integral filter is an EMC filter. The 22F-D2P5N113 AC drive supports 0 to 460 Volts AC of 3-phase output voltage with its filter. It also supports 380 to 480 Volts AC of 3-phase input voltage (+,-10%). The 22F-D2P5N113 AC drive has a small control keypad but no brake.
This Allen Bradley 22F-D2P5N113 is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Ac drives > Powerflex 520 range and is referenced internally as PartLogic SKU PL26939264758.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Model | 22F-D2P5N113 |
| Series | PowerFlex 4M |
| Type | Low voltage AC drive |
| Power Rating | 0.75 kW (1 HP) |
| Input Voltage | 480V AC, 3-phase |
| Frequency | 50/60 Hz |
| Output Current | 2.5 A |
| Enclosure | IP20, UL/NEMA Type Open |
| Mounting | Panel mount |
| Frame Size | Frame A |
| Brake IGBT | Omit |
| Filter | Internal CE compliant EMC filter |
| Power Factor | 0.98 |
| User Interface | Integral keypad with potentiometer and LED display |
| Communication | RS485 |
| Connection | Fixed terminal block |
| Manufacturer Part Number | 22F-D2P5N113 |
