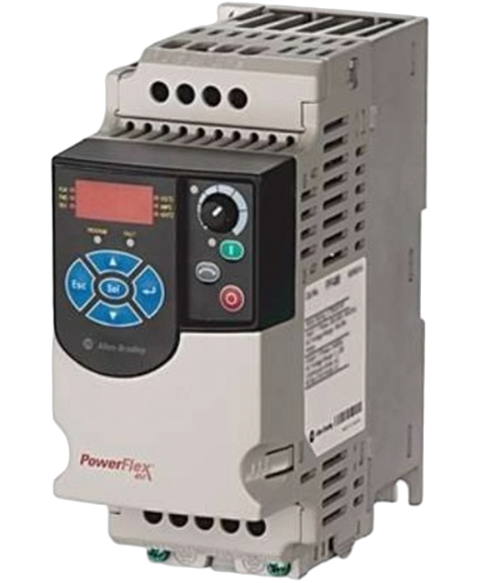

Allen Bradley 22F-D2P5N103
The Allen-Bradley 22F-D2P5N103 is a PowerFlex 4M Variable Frequency Drive (VFD). This VFD is powered with an input voltage range of 340-528VAC, 3-phase with applicable motor output 2.5 A and Power of 0.75kW (1.0 HP).
This Allen Bradley 22F-D2P5N103 is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Ac drives > Powerflex 520 range and is referenced internally as PartLogic SKU PL26801446658.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | Drives |
| Product Line | PowerFlex 4M |
| Part Number | 22F-D2P5N103 |
| UPC | 820919785177 |
| Weight | 2.38 lbs (1.08 kg) |
| Product Family | PowerFlex 40P |
| Input Voltage | 340-528 VAC |
| Input Phase | 3-Phase |
| Input Current | 3.5 A |
| Output Voltage | 0-460VAC |
| Output Current | 2.5 A |
| Output Power | 0.75 kW (1.0 HP) |
| I/O | Discrete Inputs: Five (5) Sink / Source Discrete Outputs: One (1) Form C Contacts Analog Input: One (1) Analog Input 0-10VDC; 0- 20mA |
| Installation | Panel Mount |
| Enclosure Rating | IP20 / NEMA UL Type Open |
| Built-in communication port | RS485 |
| Optional communication protocols | BacNet; LonWorks; ProfiBus; Ethernet; DeviceNet; ControlNet |
| Series | PowerFlex |
| Module Type | PowerFlex 4M Drive |
| Amperage | 2.5 |
| Wattage | 0.75 Kilowatt |
| Enclosure Type | Open- IP20 |
| Input Power | 480 Volts AC |
| Phase | Three-Phase |
| Filter | Without CE Compliant Filter |
| Horsepower | 1 Horsepower |
| Communication | RS-485 |
| Indicators | 10 LEDs |
| UNSPSC | 39122001 |
| Brand | Allen Bradley |
