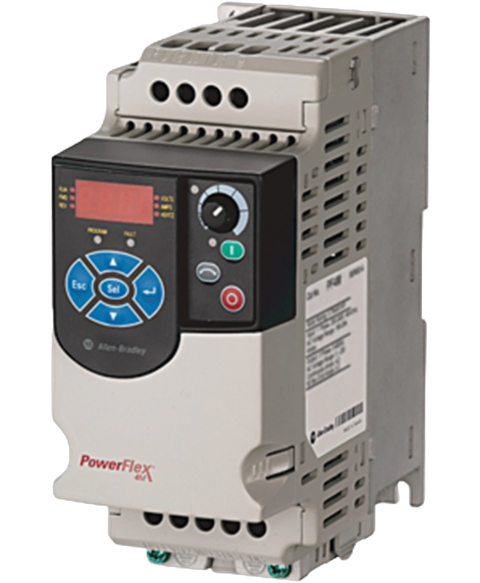

Allen Bradley 22F-D1P5N103
The 22F-D1P5N103 is a PowerFlex 4M Adjustable Frequency AC Drive from Allen-Bradley. This drive operates when supplied with voltage of 480VAC, 3-Phase. It delivers output power of 0.4 kW or 0.5 HP. The drive’s output Current is 1.5 Ampreres with an IP20, NEMA UL Type Open enclosure. It has an embedded Human Interface Module (HIM) without an IGBT brake and EMC filter.
This Allen Bradley 22F-D1P5N103 is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Ac drives > Powerflex 520 range and is referenced internally as PartLogic SKU PL26980412074.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | Drives |
| Product Line | PowerFlex 4M |
| Part Number | 22F-D1P5N103 |
| UPC | 820919785160 |
| Weight | 2.06 lbs (0.94 kg) |
| Input Voltage | 380-480VAC |
| Input Phase | 3-Phase |
| Output Voltage | 0-460VAC |
| Output Current | 1.5 A |
| Output Power | 0.4 kW or 0.5 HP |
| I/O | Discrete Inputs: Five (5) sink / source inputs Discrete Outputs: One (1) Form C contacts Analog Input: One (1) 4-20 mA; One (1) 0-10VDC |
| Installation | Panel Mount |
| Enclosure Rating | IP20 / NEMA UL Type Open |
| Built-in communication port | RS485 |
| Control Method | Volts per Hertz (V/Hz), Sinusoidal PWM |
| Internal PID | None |
| Human Interface Module | Integrated |
| Optional communication protocols | Dual Ethernet I/P; DeviceNet; ProfiBus DP |
| Amperage | 1.5 |
| Wattage | 0.37 Kilowatt |
| Enclosure Type | Open- IP20 |
| Input Power | 480 Volts- Alternating Current |
| Phase | Three-Phase |
| Filter | Without CE Compliant Filter |
| Horsepower | 0.5 Horsepower |
| Brand | Allen Bradley |
