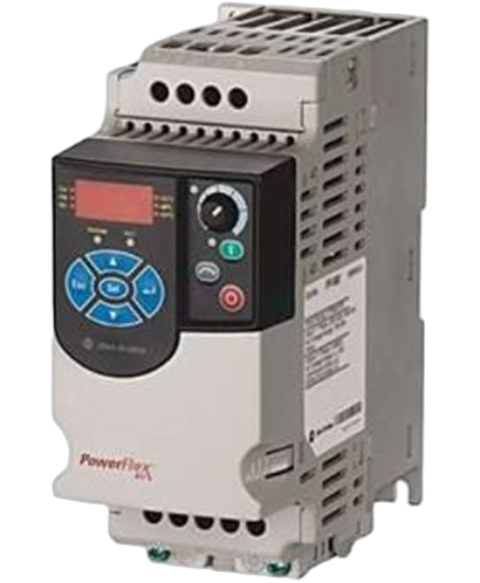

Allen Bradley 22F-B8P0N103
The Allen-Bradley 22F-B8P0N103 is a PowerFlex 4M Variable Frequency Drive (VFD). This VFD is powered with an input voltage range of 180-265VAC, 3-phase with applicable motor output 8.0 A and Power of 1.5kW (2.0 HP).
This Allen Bradley 22F-B8P0N103 is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Ac drives > Powerflex 520 range and is referenced internally as PartLogic SKU PL26939355301.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | Drives |
| Product Line | PowerFlex 4M |
| Part Number | 22F-B8P0N103 |
| UPC | 820919785092 |
| Weight | 3.00 lbs (1.36 kg) |
| Product Family | PowerFlex 40P |
| Input Voltage | 180-265 VAC |
| Input Phase | 3-Phase |
| Input Current | 9.5 A |
| Output Voltage | 0-230VAC |
| Output Current | 8.0 A |
| Output Power | 1.5 kW (2.0 HP) |
| I/O | Discrete Inputs: Five (5) Sink / Source Discrete Outputs: One (1) Form C Contacts Analog Input: One (1) Analog Input 0-10VDC; 0- 20mA |
| Installation | Panel Mount |
| Enclosure Rating | IP20 / NEMA UL Type Open |
| Built-in communication port | RS485 |
| Optional communication protocols | BacNet; LonWorks; ProfiBus; Ethernet; DeviceNet; ControlNet |
| Amperage | 8 |
| Wattage | 1.5 Kilowatt |
| Enclosure Type | Open- IP20 |
| Input Power | 240 Volts- Alternating Current |
| Phase | Three-Phase |
| Filter | Without CE Compliant Filter |
| Horsepower | 2 Horsepower |
| Brand | Allen Bradley |
