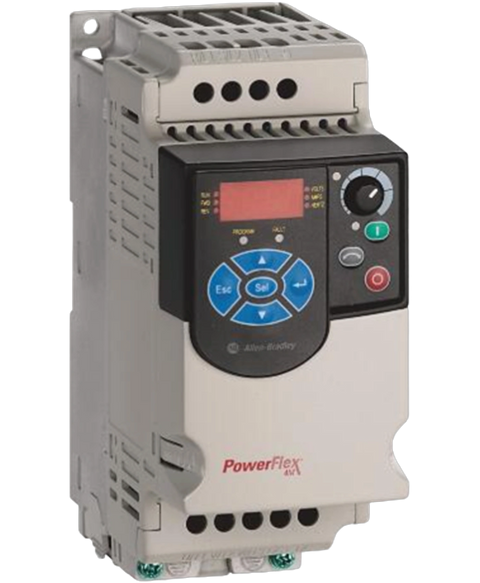

Allen Bradley 22F-A2P5N103
The 22F-A2P5N103 is an adjustable frequency AC drive. This belongs to the PowerFlex 527 drives by Allen-Bradley. It features an input voltage rating of 200-240 VAC, 1-Phase, and an input current of 2.7 Amperes. It has an output voltage of 0-230 VAC, 3-Phase, output current, and power of 2.5 Amperes and 0.5 HP or 0.4 kW. This drive is an A-frame drive with a built-in fixed keypad Human Interface Module (HIM) without an IGBT brake and EMC filter installed.
This Allen Bradley 22F-A2P5N103 is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Ac drives > Powerflex 520 range and is referenced internally as PartLogic SKU PL26945225166.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | Drives |
| Product Line | PowerFlex 4M |
| Part Number | 22F-A2P5N103 |
| UPC | 820919784972 |
| Weight | 2.38 lbs (1.08 kg) |
| Drive Category | PowerFlex 4M Adjustable Frequency AC Drive |
| Amperage | 2.5 |
| Wattage | 0.37 Kilowatt |
| Input Voltage | 200-240 VAC |
| Enclosure Type | Open- IP20 |
| Input phase | 1-Phase |
| Input Power | 240 Volts- Alternating Current |
| Output Voltage | 0-230VAC |
| Phase | One-Phase |
| Output Phase | 3-Phase |
| Filter | Without CE Compliant Filter |
| Output Power | 1.0 HP or 0.75 kW |
| Horsepower | 0.5 Horsepower |
| Output current | 1.7 A |
| Discrete Input | Five (5) 24 VDC discrete inputs |
| Analog input | Two (2) analog input |
| Discrete output | Two (2) Form C relay output |
| Braking | Non installed |
| EMC Filter | None Installed |
| Enclosure | IP20 NEMA/Open |
| Frame | A |
| Interface Module | Standard keypad |
| Communication ports | RS485 |
| Control Method | V/Hz Control |
| Brand | Allen Bradley |
