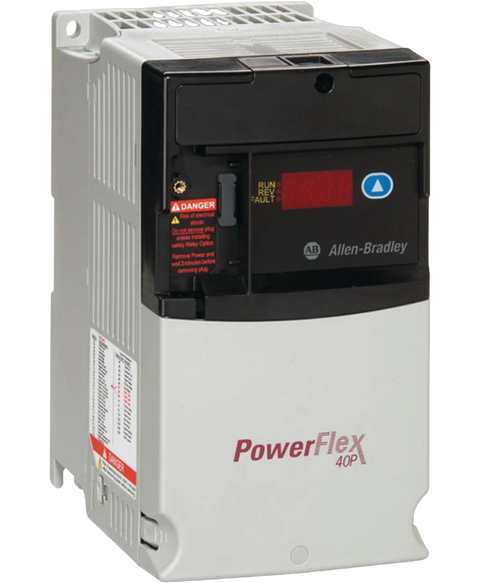

Allen Bradley 22D-D4P0N104
The Allen-Bradley 22D-D4P0N104 is a PowerFlex 40P Variable Frequency Drive (VFD). This VFD is powered with an input voltage range of 342-528VAC, 3-phase with applicable motor output of 4.0 A and Power of 1.5kW (2.0 HP).
This Allen Bradley 22D-D4P0N104 is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Ac drives > Powerflex 40 range and is referenced internally as PartLogic SKU PL26970134609.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | Drives |
| Product Line | PowerFlex 40P |
| Part Number | 22D-D4P0N104 |
| UPC | 820919654152 |
| Weight | 4.00 lbs (1.81 kg) |
| Input Voltage | 380-480 VAC |
| Input Phase | 3-Phase |
| Input Current | 5.7 A |
| Output Voltage | 0-460VAC |
| Output Power | 1.5 kW (2.0 HP) |
| I/O | Discrete Inputs: Seven (7) Sink / Source Discrete Outputs: One (1) Opto Output; Two (2) Form C Contacts Analog Input: One (1) Analog Input 0-10VDC; 0- 20mA Analog Output: One (1) Analog Output 0-10VDC; 0- 20mA |
| Installation | Panel Mount |
| Enclosure Rating | IP20 / NEMA UL Type Open |
| Built-in communication port | RS485 |
| Optional communication protocols | BacNet; LonWorks; ProfiBus; Ethernet; DeviceNet; ControlNet |
| Amperage | 4.0 A |
| Phase | Three-Phase |
| Enclosure | Open NEMA Type -Panel Mount (IP20) |
| Input Power | 480 Volts AC |
| Horsepower | 2 Horsepower |
| Filter | No CE Compliant Filter |
| Type | Standard |
| Frame Size | B |
| Brand | Allen Bradley |
