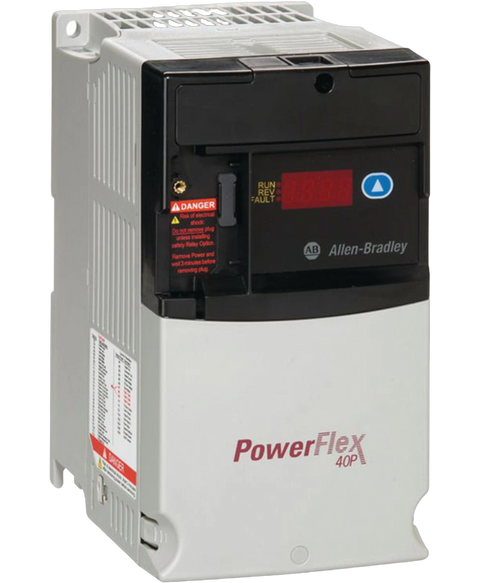

Allen Bradley 22D-D2P3N104
The Allen-Bradley 22D-D2P3N104 is a PowerFlex 40P Adjustable Frequency AC Drive. This drive has a voltage rating of 380-480VAC, 3-phase. It has an output power rating of 0.75 kW or 1.0 HP for normal and output Current of 2.3 Amperes. It has an IP20 NEMA , Open rated enclosure, and standard model drive.
This Allen Bradley 22D-D2P3N104 is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Ac drives > Powerflex 40 range and is referenced internally as PartLogic SKU PL26942685077.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | Drives |
| Product Line | PowerFlex 40P |
| Part Number | 22D-D2P3N104 |
| UPC | 820919654138 |
| Weight | 3.00 lbs (1.36 kg) |
| Input Voltage | 380-480VAC |
| Input Phase | 3-Phase |
| Input Current | 3.2 A |
| Output Voltage | 0-460VAC |
| Output Power | 0.75 kW (1.0 HP) |
| I/O | Discrete Inputs: Seven (7) Sink / Source Discrete Outputs: Two (2) Opto Output; One (1) Form C Contacts Analog Input: One (1) Analog Input 0-10VDC; 0- 20mA Analog Output: One (1) Analog Output 0-10VDC; 0- 20mA |
| Installation | Panel Mount |
| Enclosure Rating | IP20 / NEMA UL Open Type |
| Branch Circuit protection | 140M-C2E-B40 |
| Contactors | 100-C07 |
| Built-in communication port | RS485 |
| Optional communication protocols | BacNet; LonWorks; ProfiBus; Ethernet; DeviceNet; ControlNet |
| Amperage | 2.3 A |
| Phase | Three-Phase |
| Enclosure | Open NEMA Type -Panel Mount (IP20) |
| Input Power | 480 Volts AC |
| Horsepower | 1 Horsepower |
| Filter | No CE Compliant Filter |
| Type | Standard |
| Frame Size | B |
| Brand | Allen Bradley |
