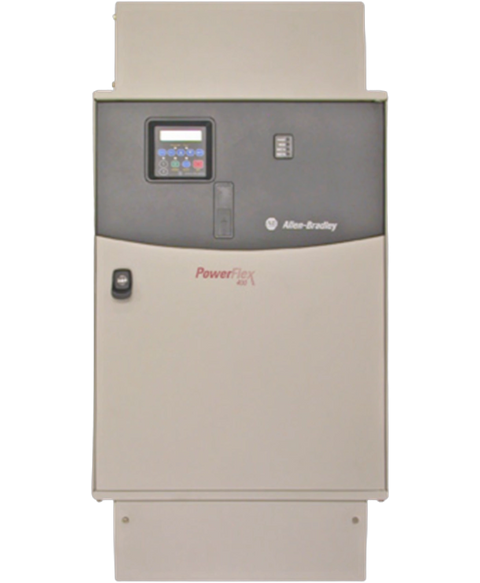

Allen Bradley 22C-D208A103
The 22C-D208A103 is a PowerFlex 400 Adjustable Frequency AC Drive from Allen-Bradley. This drive is specifically designed for fan and pump application. It operates when supplied with voltage of 480VAC, 3-Phase. It delivers output power of 110 kW or 150.0 HP. The drive’s output Current is 208 Amperes with an IP30, NEMA UL Type 1 enclosure.
This Allen Bradley 22C-D208A103 is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Ac drives > Powerflex 400 range and is referenced internally as PartLogic SKU PL26935457891.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | Drives |
| Product Line | PowerFlex 400 |
| Part Number | 22C-D208A103 |
| UPC | 820919451409 |
| Weight | 172.00 lbs (78.02 kg) |
| Input Voltage | 380-480VAC |
| Input Phase | 3-Phase |
| Output Voltage | 0-480VAC |
| Output Current | 208.0 A |
| Output Power | 110.0 kW or 150.0 HP |
| I/O | Discrete Inputs: Three (3) semi-programmable and Four (4) Fully programmable sink / source inputs Discrete Outputs: Two (2) Form C contacts and One (1) optocoupler output outputs Analog Input: One (1) Unipolar –10…10V or One (1) bipolar 0…10V or 4…20 mA. Analog Output: Two (2) 0-10VDC; 0-20mA |
| Installation | Panel Mount |
| Enclosure Rating | IP30 / NEMA UL Type 1 |
| Built-in communication port | RS485 |
| Control Method | Volts per Hertz (V/Hz), Sinusoidal PWM |
| Internal PID | Supported |
| EMC Filter | None |
| Human Interface Module | Integrated |
| Optional communication protocols | Dual Ethernet I/P; DeviceNet; ProfiBus DP |
| Drive Type | Fan & Pump |
| Horsepower | 150 |
| Phase | Three-Phase |
| Enclosure | Panel Mount - IP30, NEMA/UL Type 9 |
| Amperage | 208 Amps |
| Brand | Allen Bradley |
