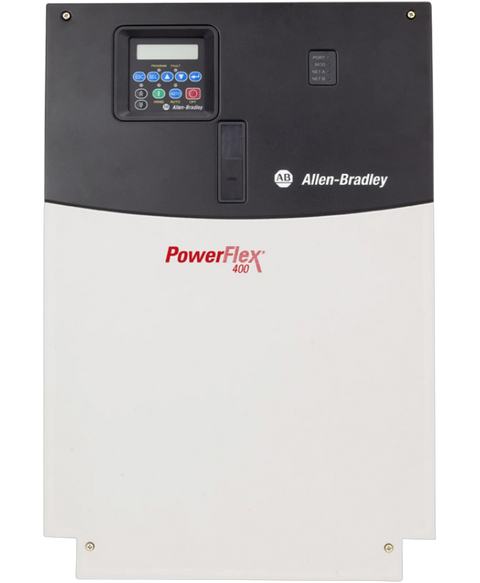

Allen Bradley 22C-D142A103
The 22C-D142A103 PowerFlex 400 adjustable frequency AC drive from Allen-Bradley. This drive is specifically designed for industrial fan and pump applications. It has an input voltage requirement of 340-528 Volts AC, 3-Phase, and provides an output voltage of 0-460 Volts AC, 3-Phase. It delivers an output current of 142 Amperes @ 45 degrees Celsius, 128 Amperes @ 50 degrees Celsius, and a power of 100.0 Horsepower or 75.0 Kilowatts. This drive comes with an RS-485 communication interface - it also supports Sinusoidal Pulse Width Modulation (PWM) and Volts,Hertz control.
This Allen Bradley 22C-D142A103 is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Ac drives > Powerflex 400 range and is referenced internally as PartLogic SKU PL26946579669.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | Drives |
| Product Line | PowerFlex 400 |
| Part Number | 22C-D142A103 |
| UPC | 820919234217 |
| Weight | 100.00 lbs (45.36 kg) |
| Input Voltage | 380-528VAC |
| Product Family | PowerFlex 400 for Fan and Pump applications |
| Input Phase | 3-Phase |
| Input Current | 150 A |
| Output Voltage | 0-460VAC |
| Output Current | 142 A @ 45o C; 128 @ 50o C |
| Output Power | 75 HP (55 kW) |
| Output Frequency | 0-320 Hz (programmable) |
| Carrier Frequency | 2…8 kHz, Drive rating based on 4 kHz |
| Embedded I/O | Discrete Inputs: Seven (7) Sink / Source Discrete Outputs: One (1) Open Output; Two (2) Form C Contacts Analog Input: Two (2) Analog Input 0-10VDC; 0- 20mA Analog Output: Two (2) Analog Input 0-10VDC; 0- 20mA |
| Installation | Panel Mount |
| Enclosure Rating | IP20 / NEMA UL Open Type |
| Control Method | Sinusoidal PWM; Volts / Hertz |
| Built-in communication port | RS485 |
| Drive Type | Fan & Pump |
| Horsepower | 100 |
| Phase | Three-Phase |
| Enclosure | Panel Mount - IP30, NEMA/UL Type 7 |
| Amperage | 142 Amps |
| Communication | Modbus RTU, P1-Floor, FLN, Metasys N2, and DSI. |
| Frame Size | E |
| Power Dissipation | 2043 Open IP20 Watts |
| Flange Mount | None |
| Brand | Allen Bradley |
