Allen Bradley 22C-D088A103

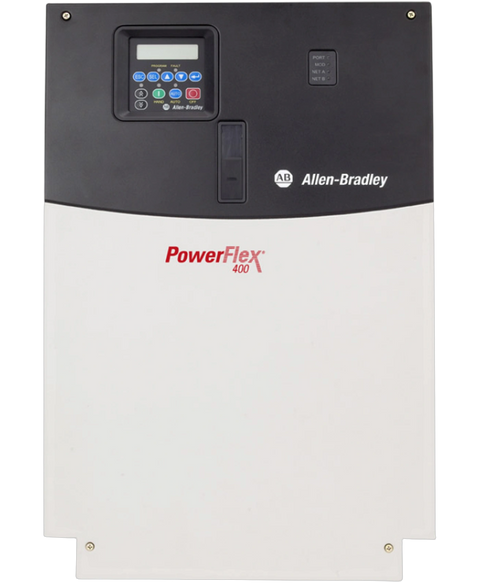

The Allen-Bradley 22C-D088A103 is a PowerFlex 400 Variable Frequency Drive (VFD). This VFD is specifically compatible for industrial fan and pump applications. It is powered with an input voltage range of 342-528VAC, 3-phase with applicable motor output of 88.0 A and Power of 45kW (60.0 HP).
This Allen Bradley 22C-D088A103 is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Ac drives > Powerflex 400 range and is referenced internally as PartLogic SKU PL26946806517.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | Drives |
| Product Line | PowerFlex 400 |
| Part Number | 22C-D088A103 |
| UPC | 820919234194 |
| Weight | 79.00 lbs (35.83 kg) |
| Input Voltage | 342-528VAC |
| Input Phase | 3-Phase |
| Input Current | 90 A |
| Output Voltage | 0-460VAC |
| Output Current | 88 A |
| Applicable Motor Rating | 45kW (60.0 HP) |
| Control Method | V/Hz, Slip compensation, Process PID |
| Embedded I/O | Discrete Inputs: Seven (7) Sink / Source Discrete Outputs: One (1) Open Output; Two (2) Form C Contacts Analog Input: Two (2) Analog Input 0-10VDC; 0- 20mA Analog Output: Two (2) Analog Input 0-10VDC; 0- 20mA |
| Installation | Panel Mount |
| Enclosure Rating | IP20 / NEMA UL Open Type |
| Built-in communication port | RS485 |
| Optional communication protocols | BacNet; LonWorks; ProfiBus; Ethernet; DeviceNet; ControlNet |
| Drive Type | Fan & Pump |
| Horsepower | 60 |
| Phase | Three-Phase |
| Enclosure | Panel Mount - IP30, NEMA/UL Type 5 |
| Amperage | 88 Amps |
| Brand | Allen Bradley |
