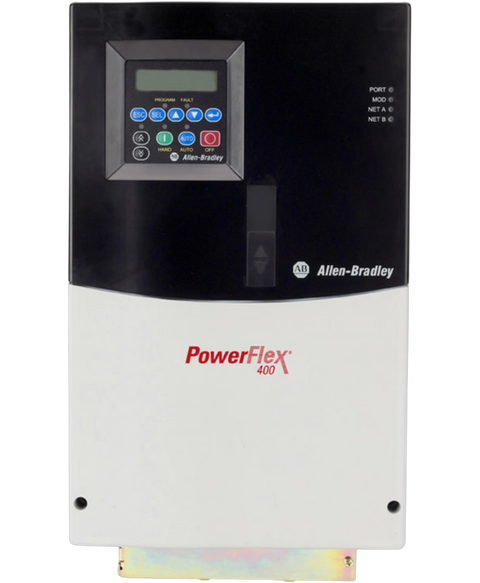

Allen Bradley 22C-D060A103
The Allen-Bradley 22C-D060A103 is a PowerFlex 400 Adjustable Frequency AC Drive for Fan and Pump applications. This drive has a supply voltage requirement of 380-480VAC, 3-phase. It has an output power rating of 30.0 kW or 40.0 HP and output Current of 60.0 A @ 45 Deg. C; 54. 0 A @ 50 Deg. Celsius.
This Allen Bradley 22C-D060A103 is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Ac drives > Powerflex 400 range and is referenced internally as PartLogic SKU PL26940785194.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | Drives |
| Product Line | PowerFlex 400 |
| Part Number | 22C-D060A103 |
| UPC | 820919234170 |
| Weight | 32.06 lbs (14.54 kg) |
| Input Voltage | 380-480VAC |
| Input Current | 64.0 A |
| Output Voltage | 0-460VAC |
| Output Current | 60.0 A @ 45 Deg. C; 54. 0 A @ 50 Deg. C |
| Output Power | 34.0 kW (40.0 HP) |
| I/O | Discrete Inputs: Seven (7) Sink / Source Discrete Outputs: One (1) Open Output; Two (2) Form C Contacts Analog Input: Two (2) Analog Input 0-10VDC; 0- 20mA Analog Output: Two (2) Analog Input 0-10VDC; 0- 20mA |
| Installation | Panel Mount |
| Enclosure Rating | IP20 / NEMA UL Open Type |
| Built-in communication port | RS485 |
| Optional communication protocols | BacNet; LonWorks; ProfiBus; Ethernet; DeviceNet; ControlNet |
| Drive Type | Fan and Pump |
| Horsepower | 40 |
| Phase | 3-Phase |
| Enclosure | Panel Mount - IP30, NEMA/UL Type 3 |
| Amperage | 60 Amps |
| Brand | Allen Bradley |
