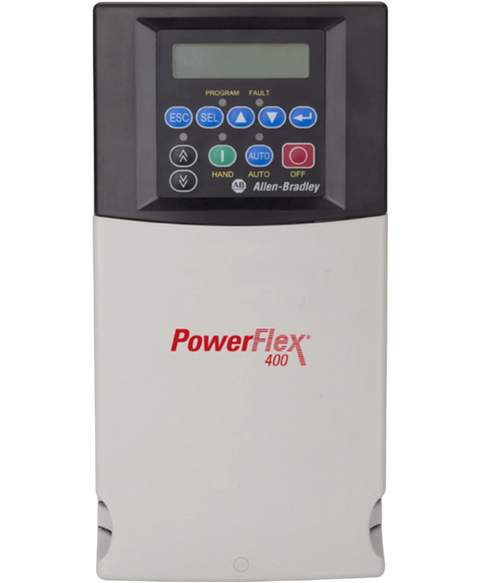

Allen Bradley 22C-D022N103
Ac drive, adjustable frequency, powerflex 400, 480VAC, 3-phase, 22A, 11kW, 15HP,, panel mount - IP20 nema type open,, fixed keypad, not filtered, rs485
This Allen Bradley 22C-D022N103 is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Ac drives > Powerflex 400 range and is referenced internally as PartLogic SKU PL26939363400.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Product Type | Fan & Pump Drive |
| Product Line | PowerFlex 400 |
| Part Number | 22C-D022N103 |
| UPC | 820919234149 |
| Weight | 13.88 lbs (6.29 kg) |
| Output Current | 22 A |
| Input Voltage | 342-528VAC |
| Input Phase | 3-Phase |
| Input Current | 23 A |
| Output Voltage | 0-460VAC |
| Applicable Motor Rating | 15.0 HP (11.0 KW) |
| Control Method | V/Hz, Slip compensation, Process PID |
| Embedded I/O | Discrete Inputs: Seven (7) Sink / Source Discrete Outputs: One (1) Open Output; Two (2) Form C Contacts Analog Input: Two (2) Analog Input 0-10VDC; 0- 20mA Analog Output: Two (2) Analog Input 0-10VDC; 0- 20mA |
| Installation | Panel Mount |
| Enclosure Rating | IP20 / NEMA UL Open Type |
| Built-in communication port | RS485 |
| Optional communication protocols | BacNet; LonWorks; ProfiBus; Ethernet; DeviceNet; ControlNet |
| Horsepower | 15 |
| Phase | Three-Phase |
| Enclosure | Panel Mount - IP20, NEMA/UL Type Open |
| Amperage | 22 Amps |
| Frame | Size C |
| Input | Integral Keypad |
| Display | LCD |
| Brand | Allen Bradley |
