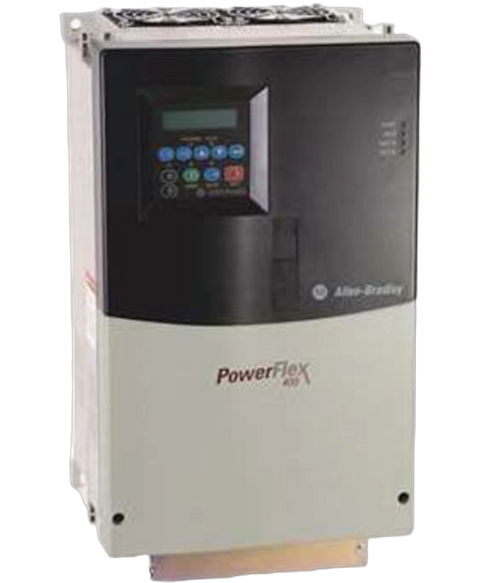

Allen Bradley 22C-B145A103
The Allen-Bradley,Rockwell Automation 22C-B145A103 drive is an AC drive that is manufactured as part of the PowerFlex 400 series. It is made to be panel mounted and it is protected by an IP 30 or NEMA Type 1 rated enclosure. The 22C-B145A103 AC drive can control 3-phase motors that operate on AC voltage. It supports a 3-phase input voltage range of 200 to 240 Volts AC and a 3-phase output voltage range of 200 to 230 Volts AC. The 22C-B145A103 AC drive’s maximum current rating is 145 Amps at 45 degrees Celsius and 130 Amps at 50 degrees Celsius.
This Allen Bradley 22C-B145A103 is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Ac drives > Powerflex 400 range and is referenced internally as PartLogic SKU PL26933386077.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | Drives |
| Product Line | PowerFlex 400 |
| Part Number | 22C-B145A103 |
| UPC | 820919234118 |
| Weight | 88.00 lbs (39.92 kg) |
| Drive Type | Fan & Pump |
| Horsepower | 50 |
| Input Voltage | 240 Volts AC |
| Phase | Three-Phase |
| Enclosure | Panel Mount - IP30, NEMA/UL Type 1 |
| Amperage | 145 Amps |
| Brand | Allen Bradley |
