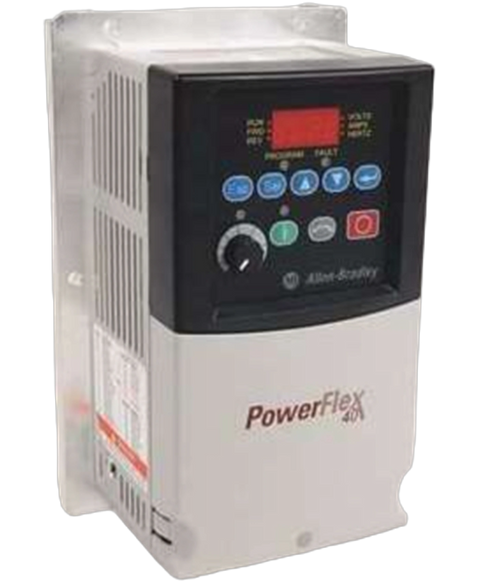

Allen Bradley 22B-E4P2N104
The Allen-Bradley 22B-E4P2N104 is a PowerFlex 40 Adjustable Frequency AC Drive. This drive features an input voltage range of 460-600VAC, 3-phase and delivers output voltage of 0-575VAC, 3-Phase, output current of 4.2 A and output Power of 2.2 kW (3.0 HP). This drive is capable of Sensorless Vector Control with integral RS485 communication interface.
This Allen Bradley 22B-E4P2N104 is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Ac drives > Powerflex 40 range and is referenced internally as PartLogic SKU PL26933339482.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | Drives |
| Product Line | PowerFlex 40 |
| Part Number | 22B-E4P2N104 |
| UPC | 820919147562 |
| Weight | 5.13 lbs (2.32 kg) |
| Input Voltage | 480VAC |
| Input Phase | 3-Phase |
| Output Voltage | 0-575VAC |
| Rated Power | 3.0 HP (2.2 KW) |
| Installation | DIN Rail / Panel Mount |
| Enclosure Rating | IP20 / NEMA/UL Type Open |
| Emission | Unfiltered |
| IGBT Brake | Included |
| Frame | B |
| Zero Stacking | Supported |
| Control Method | Sensorless Vector Control (SVC) |
| Voltage | 600AC Volts |
| Enclosure | Panel Mount - IP20, NEMA/UL Type Open |
| HP | 3 Horsepower |
| Amperage | 4.2 A |
| Phase | 3 Phase |
| Filter | No CE Compliant Filter |
| Communication | RS-485 |
| Input Type | Keypad |
| Brand | Allen Bradley |
