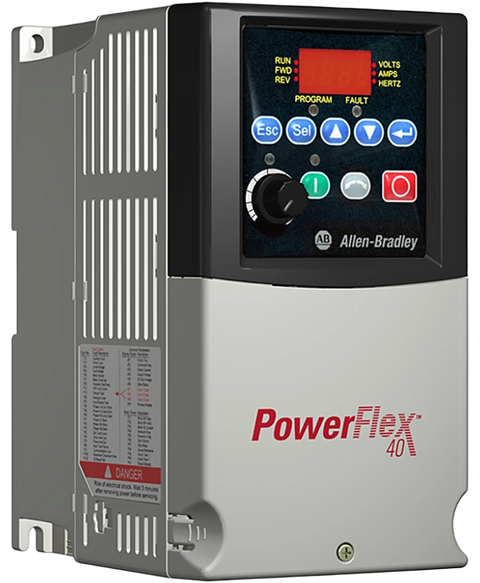

Allen Bradley 22B-E3P0N104
The Allen-Bradley,Rockwell Automation 22B-E3P0N104 drive is an adjustable frequency drive that is designed to control PLC motors. It has been manufactured as part of the Allen-Bradley PowerFlex 40 drive series. The 22B-E3P0N104 adjustable frequency drive is protected by an open enclosure with an IP 20 environmental protection rating. Depending on the system that the drive is installed in and on the ventilation equipment nearby, it can operate at a maximum temperature of either 40 degrees Celsius or 50 degrees Celsius. The 22B-E3P0N104 adjustable frequency drive has a 3-phase input voltage rating of 600 Volts AC at 50 to 60 Hertz.
This Allen Bradley 22B-E3P0N104 is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Ac drives > Powerflex 40 range and is referenced internally as PartLogic SKU PL26933351233.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | Drives |
| Product Line | PowerFlex 40 |
| Part Number | 22B-E3P0N104 |
| UPC | 820919147555 |
| Weight | 2.38 lbs (1.08 kg) |
| Filter | Without CE Compliant Filter |
| Input Voltage | 414- 660 VAC, |
| Input Phase | 3-Phase |
| Output Voltage | 0-575 VAC |
| Output Frequency | 0-400 Hz |
| Efficiency | 97.50% |
| Rated Current output | 4.2 A |
| Rated Power | 3.0 HP (2.2 kW) |
| Installation | Panel Mount |
| Enclosure Rating | IP20 / NEMA UL Type Open |
| Keypad | LED Keypad |
| Brake | included |
| Built-in Communication port | RS485 |
| Embedded I/O | Discrete Inputs: 3 fixed for START/STOP/REV; 4 Fully Programmble Discrete Outputs: 4 fully programmable; Analog Input: 2 0…10V or 4…20 mA (unipolar) 1 +/- 100V (bipolar) Discrete Output: 1 - N.O/N.C. dry contact; 2 Digital / Optocoupler |
| Voltage | 600AC Volts |
| Enclosure | Panel Mount - IP20, NEMA/UL Type Open |
| HP | 2 Horsepower |
| Amperage | 3.0 A |
| Phase | 3 Phase |
| Communication | RS-485 |
| Input Type | Keypad |
| Brand | Allen Bradley |
