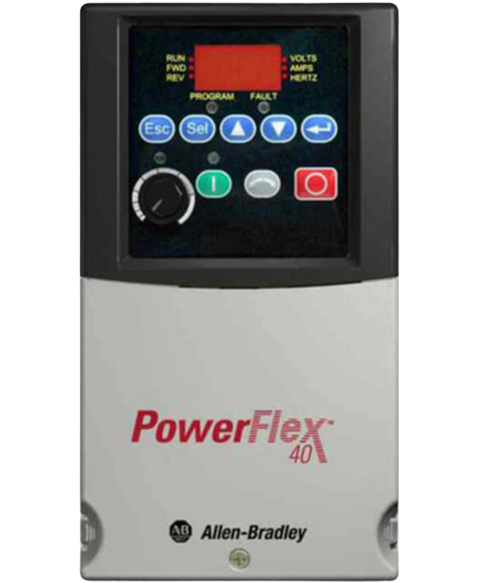

Allen Bradley 22B-D1P4N104
The Allen-Bradley 22B-D1P4N104 is a PowerFlex 40 Adjustable Frequency AC Drive. This drive has a supply voltage requirement of 342-528 VAC, 3-phase. It has an output power output rating of 0.4 kW or 0.5 HP and Current of 1.4 Amperes.
This Allen Bradley 22B-D1P4N104 is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Ac drives > Powerflex 40 range and is referenced internally as PartLogic SKU PL26939378561.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | Drives |
| Product Line | PowerFlex 40 |
| Part Number | 22B-D1P4N104 |
| UPC | 820919078538 |
| Weight | 3.19 lbs (1.45 kg) |
| Enclosure | Panel Mount - IP20, NEMA/UL Type Open |
| Input Type | Keypad |
| Communication | RS-485 |
| Filter | No CE Compliant Filter |
| Output Power | 0.5 HP / 0.4 kW |
| Brake | included |
| I/O Terminal | Discrete Inputs: 3 fixed for START/STOP/REV; 4 Fully Programmble Discrete Outputs: 4 fully programmable; Analog Input: 2 0…10V or 4…20 mA (unipolar) 1 +/- 100V (bipolar) Discrete Output: 1 - N.O/N.C. dry contact; 2 Digital / Optocoupler Analog Output: 1 0-10VDC / 4-20 mA |
| Voltage | 480AC Volts |
| HP | 0.5 Horsepower |
| Amperage | 1.4 A |
| Phase | 3 Phase |
| Brand | Allen Bradley |
