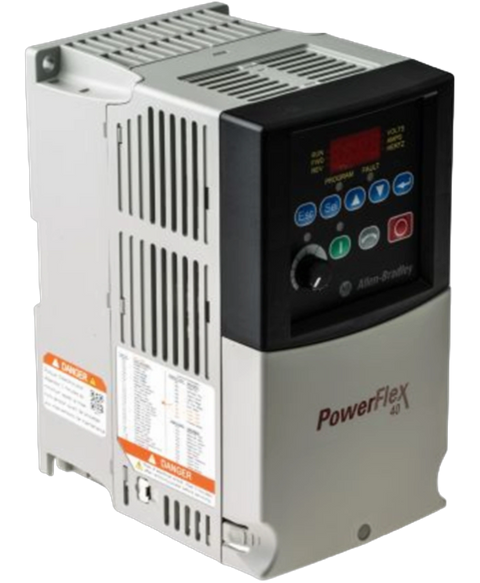

Allen Bradley 22B-D010N104
The Allen-Bradley 22B-D010N104 is a PowerFlex 4 Variable Frequency Drive (VFD). This VFD is powered with an input voltage rating of 342-528, 3-phase with applicable motor output of 10.5 A and Power of 4.0 kW (5.0 HP).
This Allen Bradley 22B-D010N104 is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Ac drives > Powerflex 40 range and is referenced internally as PartLogic SKU PL26801408457.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | Drives |
| Product Line | PowerFlex 40 |
| Part Number | 22B-D010N104 |
| UPC | 820919078576 |
| Weight | 3.00 lbs (1.36 kg) |
| Filter | Without CE Compliant Filter |
| Input Voltage | 380-480VAC |
| Input Phase | 3-Phase |
| Rated Current output | 10.3 A |
| Rated Power | 4.0 kW (5.0 HP) |
| Installation | Panel Mount |
| Enclosure Rating | IP20 / NEMA UL Type Open |
| Keypad | LED Keypad |
| Built-in Communication port | RS485 |
| I/O Terminal | Discrete Inputs: 3 fixed for START/STOP/REV; 4 Fully Programmble Discrete Outputs: 4 fully programmable; Analog Input: 2 0…10V or 4…20 mA (unipolar) 1 +/- 100V (bipolar) Discrete Output: 1 - N.O/N.C. dry contact; 2 Digital / Optocoupler |
| Voltage | 480 Volts AC |
| Horsepower | 5 Horsepower |
| Amperage | 10.0 Amps |
| Phases | 3 |
| Communication | RS-485 |
| Input Type | Keypad |
| Preset Speeds | 8 |
| Frame Size | B |
| Enclosure | IP20, NEMA/UL |
| Brand | Allen Bradley |
