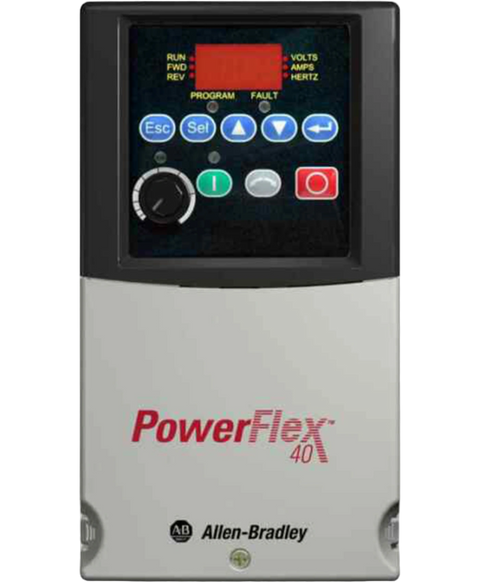

Allen Bradley 22B-B8P0N104
The Allen-Bradley 22B-B8P0N104 adjustable frequency drive is an AC-powered adjustable frequency drive from the PowerFlex 40 series. It has a 3-phase input voltage rating of 240 Volts AC with a rated frequency of 50 to 60 Hertz. The 22B-B8P0N104 adjustable frequency drive also has an output current rating of 8 Amps. It does not come with a filter. The 22B-B8P0N104 adjustable frequency drive features an open enclosure that has an IP 20 environmental protection rating.
This Allen Bradley 22B-B8P0N104 is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Ac drives > Powerflex 40 range and is referenced internally as PartLogic SKU PL26960437024.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | Drives |
| Product Line | PowerFlex 40 |
| Part Number | 22B-B8P0N104 |
| UPC | 820919078484 |
| Weight | 1.00 lbs (0.45 kg) |
| Filter | Without CE Compliant Filter |
| Input Voltage | 200-240VAC |
| Input Phase | 3-Phase |
| Output Voltage | 0-230 VAC |
| Output Frequency | 0-400 Hz |
| Efficiency | 97.50% |
| Rated Power | 2.0 HP (1.5 kW) |
| Installation | Panel Mount |
| Enclosure Rating | IP20 / NEMA UL Type Open |
| Keypad | LED Keypad |
| Brake | included |
| Built-in Communication port | RS485 |
| Embedded I/O | Discrete Inputs: 3 fixed for START/STOP/REV; 4 Fully Programmble Discrete Outputs: 4 fully programmable; Analog Input: 2 0…10V or 4…20 mA (unipolar) 1 +/- 100V (bipolar) Discrete Output: 1 - N.O/N.C. dry contact; 2 Digital / Optocoupler |
| Voltage | 240AC Volts |
| Enclosure | Panel Mount - IP20, NEMA/UL Type Open |
| HP | 2 Horsepower |
| Amperage | 8.0 A |
| Phase | 3 Phase |
| Communication | RS-485 |
| Input Type | Keypad |
| Brand | Allen Bradley |
