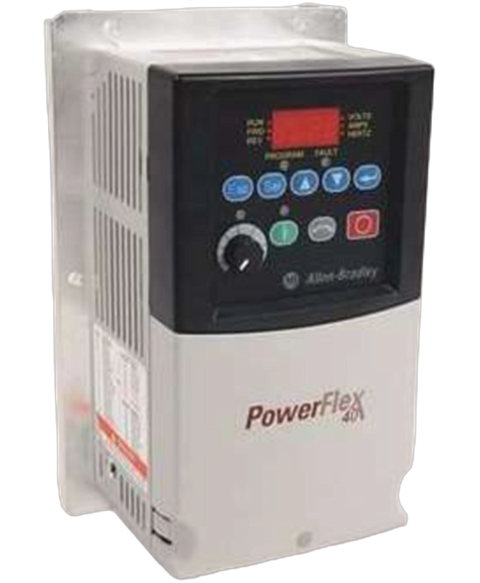

Allen Bradley 22B-B012N104
The 22B-B012N104 is a PowerFlex 40 Adjustable Frequency AC Drive from Allen-Bradley. This drive operates when supplied with voltage of 240VAC, 3-Phase. It delivers output power of 2.2 kW or 3.0 HP. The drive’s output Current is 12.0 Amperes with an IP20 NEMA , Open rated enclosure.
This Allen Bradley 22B-B012N104 is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Ac drives > Powerflex 40 range and is referenced internally as PartLogic SKU PL26805406934.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | Drives |
| Product Line | PowerFlex 40 |
| Part Number | 22B-B012N104 |
| UPC | 820919078491 |
| Weight | 3.63 lbs (1.64 kg) |
| Input Voltage | 240VAC |
| Input Phase | 3-Phase |
| Output Voltage | 0-230VAC |
| Output Power | 2.2 kW or 3.0 HP |
| I/O | Discrete Inputs: Four (4) Sink / Source Discrete Outputs: One (1) N.O.; One (1) N.C. Contacts; Two (2) Digital / Optocoupler Analog Input: Two (2) Unipolar 0-10VDC; 0- 20mA; One (1) bipolar +/-10VDC Analog Output: One (1) Analog Input 0-10VDC; 0- 20mA |
| Installation | Panel Mount / DIN Rail |
| Zero Stacking | Supported |
| Enclosure Rating | IP20 / NEMA UL Type Open |
| Control Method | Volts per Hertz (V/Hz), Sensorless Vector Control (SVC), |
| StepLogicTechnology | Integrated |
| Integrated safety | Safe-Torque Off (STO) functionality |
| Built-in communication port | RS485 |
| Voltage | 240AC Volts |
| Enclosure | Panel Mount - IP20, NEMA/UL Type Open |
| HP | 3 Horsepower |
| Amperage | 12.0 A |
| Phase | 3 Phase |
| Filter | No CE Compliant Filter |
| Communication | RS-485 |
| Input Type | Keypad |
| Brand | Allen Bradley |
