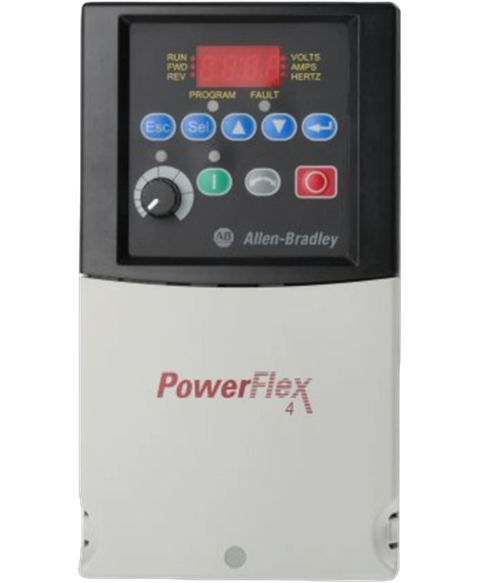

Allen Bradley 22A-D8P7N104
The Allen-Bradley 22A-D8P7N104 is a PowerFlex 4 Variable Frequency Drive (VFD). This VFD is powered with an input voltage range of 342-528 VAC, 3-phase with applicable motor output of 8.7 A and Power of 3.7 kW (5.0 HP).
This Allen Bradley 22A-D8P7N104 is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Ac drives > Powerflex 4 range and is referenced internally as PartLogic SKU PL26805592011.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Product Type | AC drive |
| Product Line | PowerFlex 4 |
| Part Number | 22A-D8P7N104 |
| UPC | 662453979663 |
| Weight | 4.00 lbs (1.81 kg) |
| Filter | Without CE Compliant Filter |
| Input Voltage | 380-480VAC |
| Input Phase | 3-Phase |
| Rated Current output | 8.7 A |
| Rated Power | 3.7kW (5.0 HP) |
| Installation | Panel Mount |
| Enclosure Rating | IP20 / NEMA UL Type Open |
| Keypad | LED Keypad |
| Built-in Communication port | RS485 |
| I/O Terminal | Discrete Inputs: 3 fixed for START/STOP/REV; 2 Fully Programmble Discrete Outputs: 4 fully programmable; Analog Input: 2 1 0…10V or 4…20 mA) Discrete Output: 1 - N.O/N.C. dry contact; |
| Amperage | 8.7 Amps |
| Enclosure Type | IP20/UL (Open) |
| Phases | 3 |
| Wattage | 3.7 Kilowatt |
| Input Type | Keypad |
| Display | Light-Emitting Diode (LED) |
| Horsepower | 5 Horsepower |
| Input Power | 380 to 480 Volts AC |
| Brake Drive | Brake Drive |
| Frame Size | B |
| Brand | Allen Bradley |
