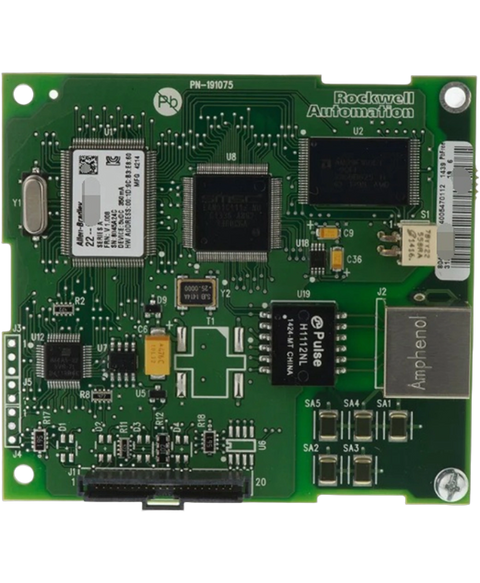

Allen Bradley 22-COMM-P
The Allen-Bradley 22-COMM-P is an Profibus communication adapter that is compatible for use with PowerFlex 4, 40 and 400 series drives. This adapter directly attached to the drive’s communication adapter slot and provides Profibus connectivity with data communication rates of 9.6 kbps, 19.2 kbps, 93.75 kbps, 187.5 kbps, 500 kbps, 1.5 Mbps, 3 Mbps, 6 Mbps, or 12 Mbps data rate.
This Allen Bradley 22-COMM-P is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Ac drives > Powerflex 4 range and is referenced internally as PartLogic SKU PL26939423536.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Product Type | Profibus Adapter |
| Product Line | PowerFlex 40 |
| Part Number | 22-COMM-P |
| UPC | 820919202100 |
| Weight | 0.81 lbs (0.37 kg) |
| Status Indicators | PORT, MOD, NET A, NET B |
| Description | Profibus communication adapter |
| Communication Port | One (1) DB9 SUB-D |
| Communication Protocol | Profibus |
| Data Rate | 9.6 kbps, 19.2 kbps, 93.75 kbps, 187.5 kbps, 500 kbps, 1.5 Mbps, 3 Mbps, 6 Mbps, or 12 Mbps |
| Supported Drives | PowerFlex 4, 40 and 400 |
| Drive Power consumption | 370 mA at 5V DC supplied by the host drive |
| Operating Temperature | -10…50 °C (14…122 °F) |
| Storage | -40…85 °C (-40…185 °F) |
| Relative Humidity | 5…95% non-condensing |
| Regulatory Compliance | UL508C, EN50178 and EN61800-3 |
| Classification | Optional User-Installed spare part |
| Network Nodes | 1 |
| DSI Connector | 20 pins |
| Brand | Allen Bradley |
