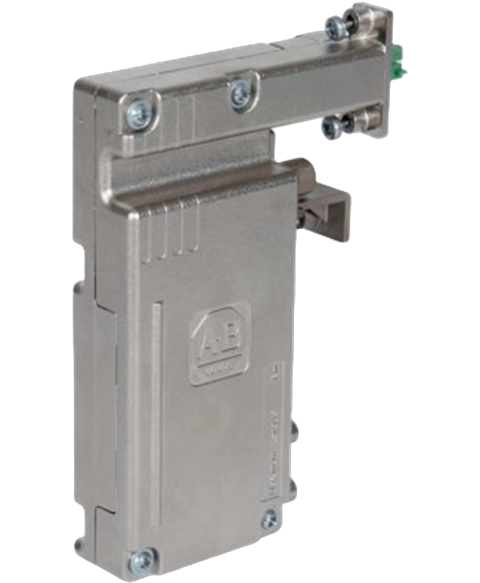

Allen Bradley 2198-H2DCK
The 2198-H2DCK is a robust feedback converter kit from Allen Bradley's Kinetix 5500 series, designed for seamless conversion from Hiperface to DSL communication protocols. This kit enhances motor feedback capabilities with its precision components and thorough configuration options.
This Allen Bradley 2198-H2DCK is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Servo drives > Kinetix 5700 range and is referenced internally as PartLogic SKU PL26938834353.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Product Type | Feedback Converter Kit |
| Part Number | 2198-H2DCK |
| UPC | 885630806563 |
| Weight | 0.25 lbs (0.11 kg) |
| Series | Kinetix 5500 |
| Conversion Option | Hiperface to DSL |
| Compatible Cables | 2090 Motor Feedback Cables |
| Wire Terminations | Terminations for up to 10 Hiperface encoder signals |
| Cable Diameter | 0.26 to 0.47 inches |
| Wire Size for Screw Terminals | 28 to 16 AWG |
| Mounting Screw Torque | 0.4 Nm |
| Terminal Screw Torque | 0.22 to 0.25 Nm |
| Clamp and Cover Screw Torque | 0.3 Nm |
| Kit Contents | Converter kit, mounting screws, cover screws, shield clamp, shield clamp screws, mounting bracket, captive screws, clamp spacer (for Kinetix 5000 drives), tie wrap, and 2 spare screws. |
| Brand | Allen Bradley |
