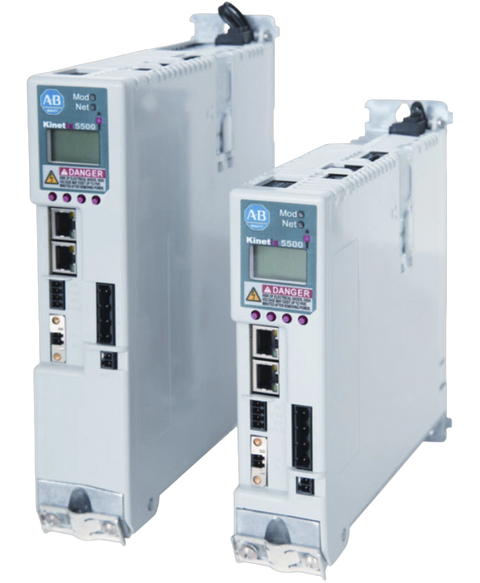

Allen Bradley 2198-H040-ERS
The 2198-H040-ERS is a Kinetix 5500 Servo Drive. This Servo Drive is compatible with AC input supply voltages of 195…264V rms, 3-phase with 240VAC nominal and 324…528V rms, 3-phase with 480VAC nominal. This servo drive has Continuous output current (rms) of 13.0 A, peak output Current of 32.5 A and output power of 4.0kW - 8.3 kW depending on the input voltage supply.
This Allen Bradley 2198-H040-ERS is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Servo drives > Kinetix 5700 range and is referenced internally as PartLogic SKU PL26966771211.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | Drives |
| Product Line | Kinetix 5500 |
| Part Number | 2198-H040-ERS |
| UPC | 884951282827 |
| Weight | 5.00 lbs (2.27 kg) |
| Input Voltage | 195…264V rms, three-phase (240V nom); 324…528V rms, three-phase (480V nom); |
| Continuous Output Current (0-peak) | 13.0 A |
| Input Frequency | 47…63 Hz |
| Continuous Output Power | 4.0 KW at 195…264V rms, three-phase; 8.4 kW at 324…528V rms, three-phase; |
| Continuous Output Current (rms) | 18.4 A |
| Peak Output Current (0-peak) | 32.5 A |
| Peak Output Current (rms) | 45.9 A |
| Velocity Loop | 300 Hz |
| Current Loop | 1000 Hz |
| Efficiency | 97% |
| Short-circuit current rating | 200,000 A (rms) symmetrical |
| Integrated Safety Over Ethernet I/P | Not supported |
| Hardwired Safety | Yes |
| Frame Size | Frame Size 2 |
| Peak Output Current | 32.5 Amperes |
| Nom Drive Voltage | 240/480 V (Three Phase) |
| Brand | Allen Bradley |
