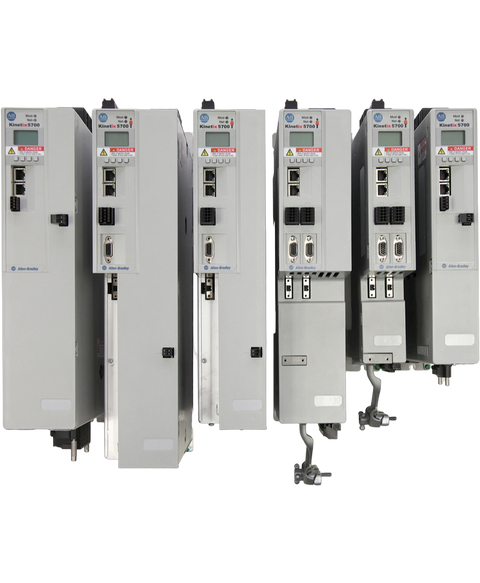

Allen Bradley 2198-D012-ERS3
The Allen-Bradley 2198-D012-ERS3 is an axis module that is part of the Kinetix Ethernet I,P 5700 servo system. This servo drive is a dual-axis inverter with continuous output power of 1.7 kW at 240V input, and 3.4 kW @ 480V input. It has continuous output current of 7.0 A and continuous peak current of 17.6 A. It supports max. velocity loop of 400 Hz, Current loop of 1000 Hz and PWM frequency of 4 kHz.
This Allen Bradley 2198-D012-ERS3 is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Servo drives > Kinetix 5700 range and is referenced internally as PartLogic SKU PL26980395947.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | Drives |
| Product Line | Kinetix 5700 |
| Part Number | 2198-D012-ERS3 |
| UPC | 885630797830 |
| Weight | 9.00 lbs (4.08 kg) |
| Internal Capacitance | 165 ?F |
| Module Type | Dual-axis Inverter |
| Bandwidth Velocity loop | 400 Hz |
| Bandwidth Current loop | 1000 Hz |
| PWM Frequency | 4 kHz |
| Continuous output current (rms) | 5.0 A |
| Continuous output current (0-pk) | 7.0 A |
| Continuous power out (nom) (240V rms, three-phase at 1/2 power) | 1.7 kW |
| Continuous power out (nom) (480V rms, three-phase) | 3.4 kW |
| DC input current @ 276…747V DC | 5.3 A |
| Jumper connector | Not installed (default) |
| Module Width | 55 mm |
| Torque Value | 4.4-5.3 lb*in (0.5-0.6 N*m) |
| 29 Volt Inrush Current | 4.0 Amperes |
| Continuous Output Power | 3.4 kWatts |
| Continuous Output Current (0-peak) | 7.0 Amperes |
| Input Voltage | N/A |
| Brand | Allen Bradley |
